Subaru Crosstrek Owners Manual / Illustrated / Illustrated index / Combination meter / U.S.-spec. models (type A)

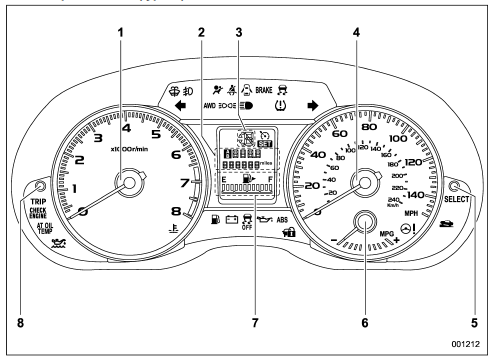

U.S.-spec. models (type A)

The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration.

Tachometer
Trip meter and odometer
Select lever/gear position indicator
Speedometer
Information display selection knob
ECO gauge
Fuel gauge
Trip meter A/B selection and trip meter reset knob
