Subaru Crosstrek Owners Manual: U.S.-spec. models (type B)

U.S.-spec. models (type B)

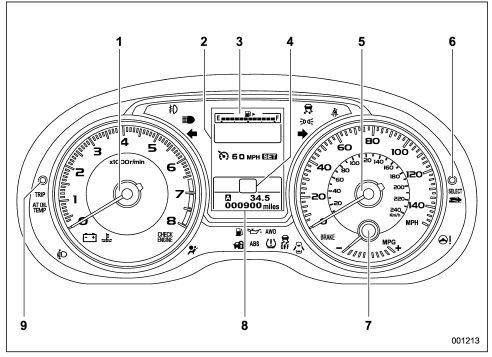

The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration.

  1. Tachometer
  2. Multi information display
  3. Fuel gauge
  4. Select lever/gear position indicator
  5. Speedometer
  6. Information display selection knob
  7. ECO gauge
  8. Trip meter and odometer
  9. Trip meter A/B selection and trip meter reset knob
U.S.-spec. models (type A)
The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration. Tachometer Trip meter and odometer Sel ...

Except U.S.-spec. models (type A)
The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration. Tachometer Trip meter and odometer Sel ...
