Subaru Ascent 2018-2026 Owner's Manual: Third-row seats

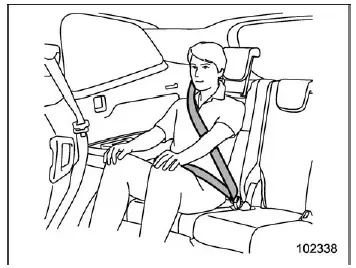

Subaru Ascent third row seats overview with passenger seating configuration

The Subaru Ascent third-row seating area is designed to provide комфорт, практичність і безпеку для пасажирів навіть на задніх місцях. Proper seating position and correct use of safety systems are essential for maximizing protection in the Subaru Ascent.

WARNING

Seatbelts in the Subaru Ascent provide optimal protection only when passengers sit upright with their backs firmly against the seatback. Never place cushions or any additional objects between the passenger and the seat.

Incorrect seating posture may increase the risk of sliding under the lap belt or improper belt positioning across the abdomen, which can result in serious injury or fatal consequences during a collision.

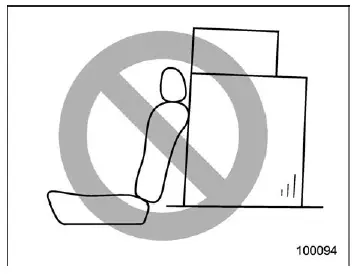

Subaru Ascent cargo loading height safety for third row passengers

WARNING

When loading cargo in the Subaru Ascent, never stack items higher than the top of the seatbacks. In case of sudden braking or impact, unsecured cargo may shift forward and pose a significant danger to passengers.

Third-row seats

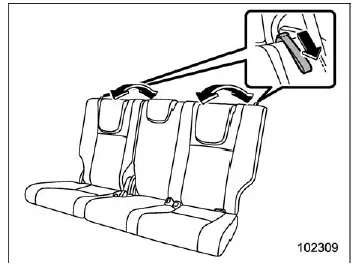

Subaru Ascent third row seatback adjustment strap mechanism

To adjust the seatback in the Subaru Ascent, pull the strap upward and set the seatback to the desired angle. After adjustment, release the strap and confirm that the seatback is securely locked into position before driving.

Access to the third-row seats

The Subaru Ascent is equipped with convenient access levers located on both sides of the second-row seats. These levers allow easy entry to the third-row seating area.

WARNING

When the second-row seat in the Subaru Ascent is slid forward with the seatback tilted, it is not locked and may move freely. Never drive the vehicle or allow passengers to sit in this condition.

Failure to ensure proper locking of the seat may result in serious injury or even fatal consequences during sudden braking or collision.

CAUTION

When entering or exiting the third-row seats of the Subaru Ascent, make sure the second-row seat is fully slid forward and always watch your footing to avoid slipping or injury.

To access the third-row seat

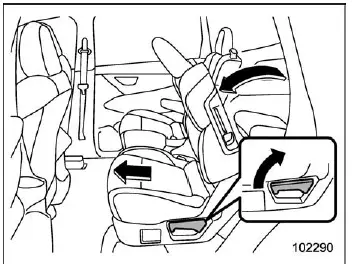

Subaru Ascent captain seat access to third row folding mechanism
Captain seat

Subaru Ascent bench seat access to third row sliding mechanism
Bench seat

Fold the second-row seatback forward and slide the seat toward the front to create sufficient space for accessing the third-row seats in the Subaru Ascent.

Before driving the Subaru Ascent, always return the second-row seat to its proper position, adjust it forward or backward as needed, and confirm that the seatback is securely locked.

To get out from the third-row seat

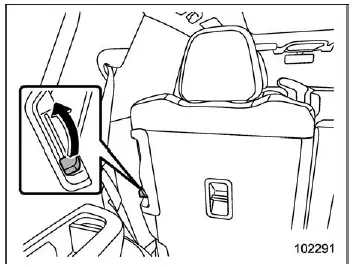

Subaru Ascent third row exit mechanism captain seat
Captain seat

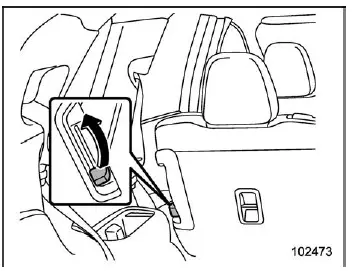

Subaru Ascent third row exit mechanism bench seat
Bench seat

To exit the third-row seat in the Subaru Ascent, pull the release lever from the rear seating area.

The second-row seatback will automatically tilt forward and the seat will slide forward to allow easy exit.

Before driving, reposition the second-row seat and ensure it is fully locked and secure.
