Subaru Crosstrek Service Manual: Specification

Subaru Crosstrek Service Manual / Rear suspension / General description / Specification

REAR SUSPENSION > General Description

SPECIFICATION

Refer to “SPECIFICATIONS” in “FRONT SUSPENSION” section for rear suspension specifications. General Description > SPECIFICATION">

NOTE:

• Front toe-in, rear toe-in and front camber can be adjusted. Adjust if the value of toe-in or camber exceeds the tolerance range of the specification chart.

• Other items except for front toe-in, rear toe-in and front camber that are described in the specification chart cannot be adjusted. If other items exceed the tolerance range of the specification chart, check the suspension parts and connections for deformation. If defective, replace with new parts.

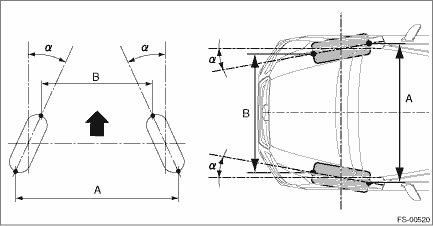

A − B = Positive: Toe-in, Negative: Toe-out

α = Individual toe angles
