Subaru Ascent 2018-2026 Owner's Manual: Spare tire

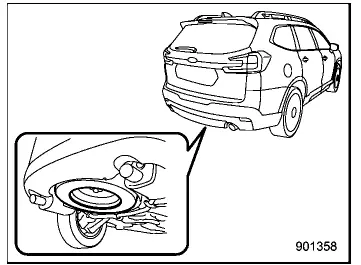

The spare tire in the Subaru Ascent is positioned in a dedicated holder beneath the cargo compartment, utilizing a hoist mechanism that allows for easy lowering and raising.
This holder is specifically engineered to accommodate only the designated temporary spare tire or, in emergency situations, a full-size flat tire.
A full-size tire should only be stored temporarily in this location during emergencies. Once repaired, it should be replaced with the proper spare tire configuration.
Before using the temporary spare tire, carefully review the section titled "Temporary spare tire" for important safety guidelines.
Removing the spare tire
1. Retrieve the wheel nut wrench, screwdriver, and extensions from the tool storage compartment.

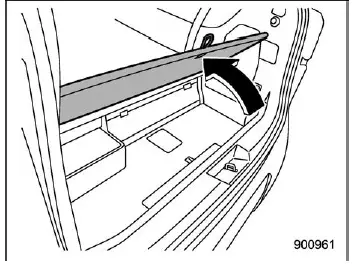

2. Remove the subfloor storage lid from the cargo area.
3. Take out the jack.

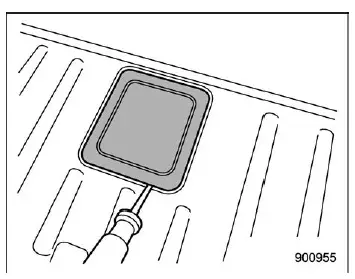

4. Use a screwdriver to open the central cover located on the luggage floor.

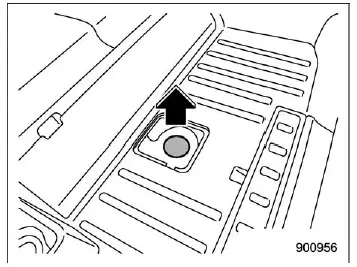

5. Remove the rubber protective cap.

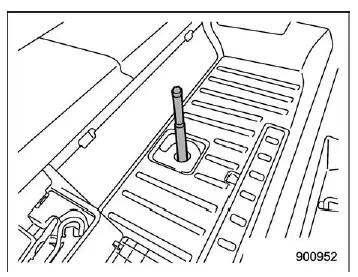

6. Attach the two extensions to the hoist shaft.
7. Fit the wheel nut wrench onto the extension assembly.

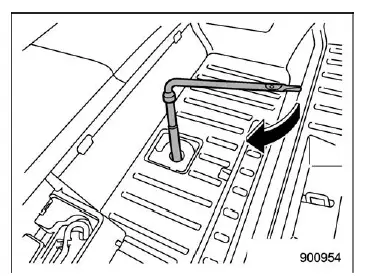

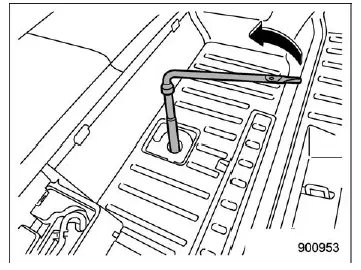

8. Rotate the hoist shaft counterclockwise using the wrench until the cable is fully extended and the spare tire lowers completely.
CAUTION
- Always fully remove the subfloor storage lid before operating the wrench to prevent damage to the interior components of the Subaru Ascent.
- Keep your fingers clear of the wheel’s center opening when removing the spare tire, as they may become pinched between components.

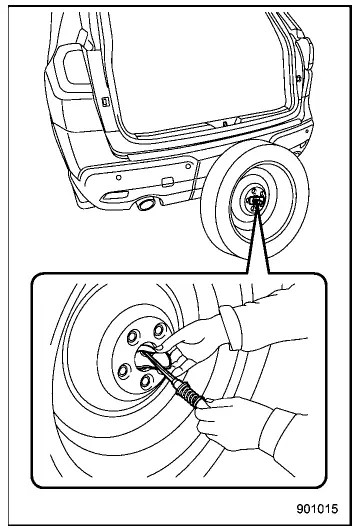

9. Carefully tilt the spare tire upward and remove the retaining bracket as illustrated.
10. After removing the tire from the cable, rewind the cable completely by turning the hoist shaft clockwise until a clicking sound is heard. Confirm visually that no slack remains in the cable.
WARNING

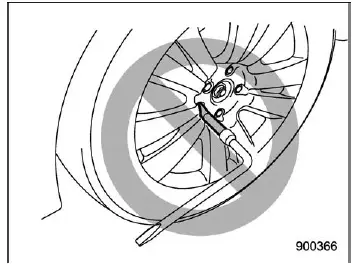

- Do not use extensions when tightening wheel nuts, as this may prevent achieving proper torque and could result in wheel loosening.
- After removing the spare tire, ensure the cable is fully retracted. Failure to do so may damage underbody components and create hazardous driving conditions.
- The spare tire holder is intended only for the designated spare tire
or a temporarily stored flat tire.
- Temporary spare tire supplied with the Subaru Ascent
- Full-size flat tire (emergency use only)
Never store a non-flat full-size tire in the holder, as it may cause damage or compromise safety.
CAUTION
Do not use power tools when operating the hoist mechanism, as this may cause serious mechanical damage.
Re-storage of spare tire
1. Rotate the hoist shaft counterclockwise until the cable slack is sufficient for inserting the retainer through the tire’s center hole.

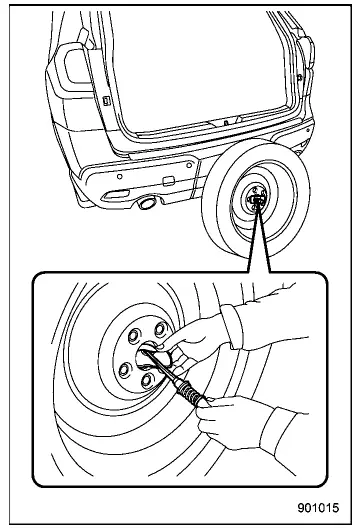

2. Insert the retainer through the center opening of the spare tire.
3. Tighten the hoist shaft clockwise until the cable is fully secured and audible clicks confirm proper engagement. Verify by gently shaking the tire.
CAUTION
If the spare tire is not properly secured, it may shift, causing noise or damage to nearby components of the Subaru Ascent.
4. Reinstall the rubber cap.
5. Close the access cover.
6. Return all tools (wrench, extensions, jack, handle) to their designated storage locations.
7. Reinstall the cargo floor lid.
CAUTION
- When storing a flat tire, rotate the hoist slowly to prevent damage to the wheel.
- Replace the temporary storage of a flat tire with the proper spare tire as soon as repairs are completed.
- Ensure that the wider tread of a full-size tire does not interfere with surrounding components when stored.
Additional note: Proper handling and storage of the spare tire in your Subaru Ascent ensures reliability during emergencies and prevents unnecessary damage to underbody systems, contributing to safer and more efficient vehicle operation.
