Subaru Crosstrek Service Manual: Removal

WIPER AND WASHER SYSTEMS > Combination Switch (Wiper)

REMOVAL

1. Disconnect the ground cable from battery. NOTE">

2. Remove the cover assembly - column.

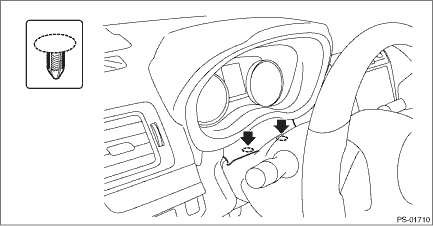

(1) Release the clips, and remove the cover assembly - steering UPR.

(2) Remove the screws by turning the steering wheel to right and left.

(3) Remove the cap - key cylinder (a). (Model with keyless access with push button start)

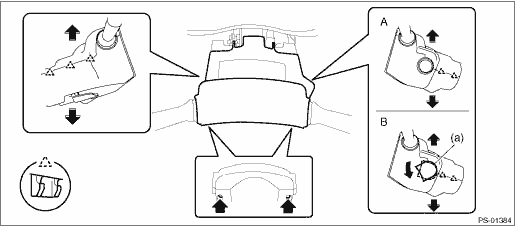

(4) Release the claw, and remove the cover assembly - column UPR and the cover assembly - column LWR.

A

Model without keyless access with push button start

B

Model with keyless access with push button start

3. Remove the switch assembly - combination wiper select.

(1) Disconnect the connector.

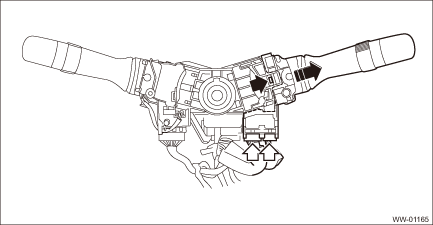

(2) Release the claws, and pull out the switch assembly - combination wiper select.

CAUTION:

Do not press the claws with excessive force. They may be damaged.

Inspection
WIPER AND WASHER SYSTEMS > Combination Switch (Wiper)INSPECTION1. INSPECTION OF SWITCH UNIT1. Operate the switches to check the continuity between terminals. Switch positionTerminal No.StandardFron ...

Installation
WIPER AND WASHER SYSTEMS > Combination Switch (Wiper)INSTALLATIONInstall each part in the reverse order of removal. ...
