STARTING/CHARGING SYSTEMS(H4DO) > Starter

REMOVAL

1. Disconnect the ground cable from battery. NOTE">

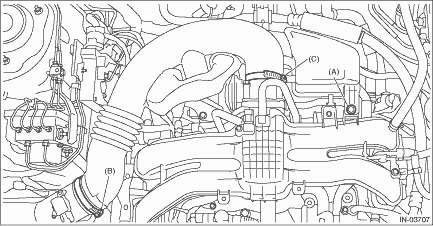

2. Remove the clip (A) from the air intake boot.

3. Loosen the clamp (B) securing the air cleaner case (rear) to the air intake boot.

4. Loosen the clamp (C) which secures the throttle body to the air intake boot.

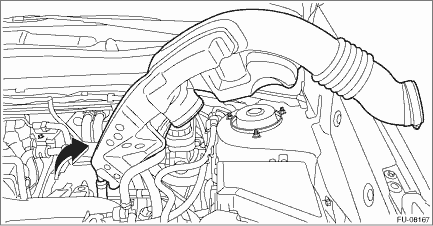

5. Remove the air intake boot from the throttle body, and place the air intake boot aside so that it does not interfere with the work.

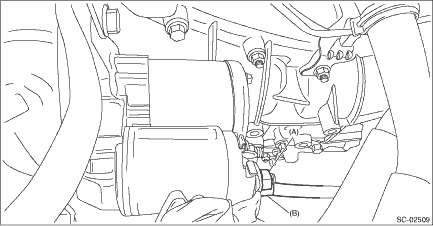

6. Disconnect the connector (B) and terminal (A) from starter.

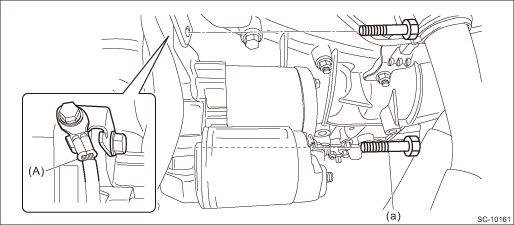

7. Disconnect the terminal (A) from the cable stay and remove the cable stay and starter from the transmission.

CAUTION:

In order to prevent damaging the terminal (A), fix the terminal (A) when loosing the bolt, and avoid the part from rotating together while loosening the bolt.

NOTE:

For CVT model, a nut is used at (a).
