SECURITY AND LOCKS > Accessory Relay (Push Button Start)

REMOVAL

CAUTION:

Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION">

1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">

2. Remove the cover assembly - instrument panel LWR driver. Instrument Panel Lower Cover > REMOVAL">

3. Remove the knee airbag module. Knee Airbag Module > REMOVAL">

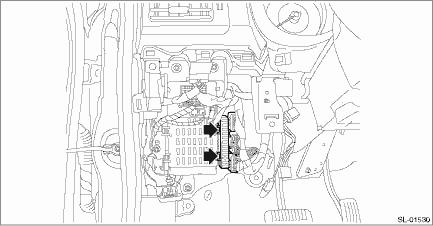

4. Release the lock and remove the fuse holder.

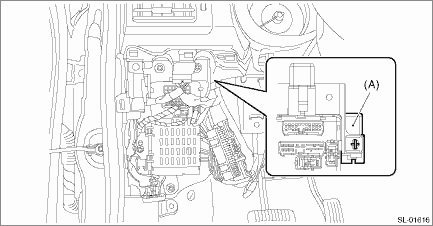

5. Remove the accessory relay (push button start) (A) from the relay and fuse box.

Inspection
SECURITY AND LOCKS > Accessory Relay (Push Button Start)INSPECTIONRefer to “CHECK RELAY” in “Relay and Fuse”. Relay and Fuse > INSPECTION"> ...

Installation
SECURITY AND LOCKS > Accessory Relay (Push Button Start)INSTALLATIONCAUTION:Before handling the airbag system components, refer to “CAUTION” of “General Description” in &ldq ...
