Subaru Crosstrek Service Manual: Removal
REAR SUSPENSION > Rear Lateral Link
REMOVAL
1. Disconnect the ground cable from battery. NOTE">
2. Lift up the vehicle, and then remove the rear wheels.
3. Remove the sensor assembly - headlight beam leveler. (Model with auto headlight beam leveler, left side only)
CAUTION:
Do not apply impact to the sensor assembly - headlight beam leveler or forcibly move the arm. Doing so may cause sensor damage and malfunction.

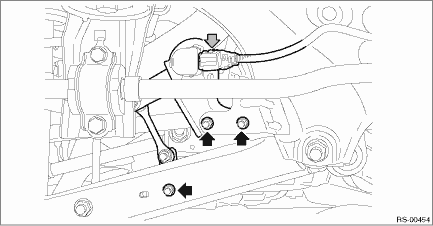

(1) Disconnect the connector of the sensor assembly - headlight beam leveler.
(2) Remove the nuts, and remove the sensor assembly - headlight beam leveler.

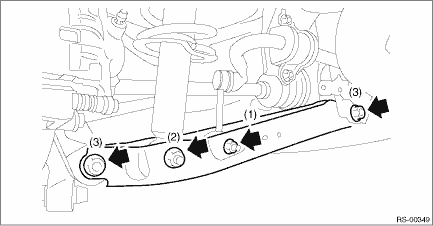

4. Remove the bolts and nuts, and remove the lateral link assembly - rear on the left and right sides.
(1) Remove the nut and disconnect the rear stabilizer link.
(2) Remove the bolts from the lower side of rear shock absorber assembly.
(3) Disconnect the lateral link assembly - rear.
