Subaru Crosstrek Service Manual: Removal

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Engine Oil Temperature Sensor

REMOVAL

CAUTION:

If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emission of smoke or causing a fire.

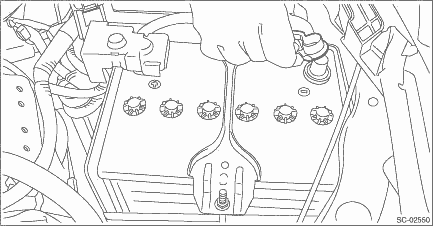

1. Disconnect the ground cable from battery.

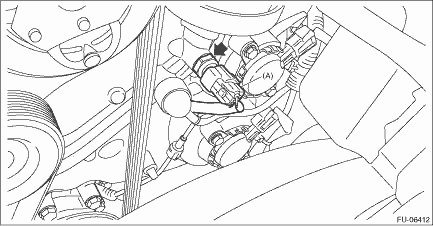

2. Disconnect the connector (A) from the engine oil temperature sensor, and remove the engine oil temperature sensor from the chain cover.

Inspection
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Engine Oil Temperature SensorINSPECTION1. Check that the engine oil temperature sensor has no deformation, cracks or other damages.2. Immerse the engine oil te ...

Installation
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Engine Oil Temperature SensorINSTALLATIONInstall in the reverse order of removal.NOTE:Use a new gasket.Tightening torque:18 N·m (1.8 kgf-m, 13.3 ft-lb) ...
