PARKING BRAKE > Parking Brake Lever

REMOVAL

CAUTION:

Refer to “CAUTION” of “General Description” before handling the airbag system components. General Description > CAUTION">

1. Set the wheel stoppers to tires.

2. Remove the headrest assembly - front.

3. Move the passenger’s seat towards the front.

4. Remove the driver’s seat. Front Seat > REMOVAL">

5. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">

6. Remove the console box assembly. Console Box > REMOVAL">

7. Remove the lever assembly - hand brake.

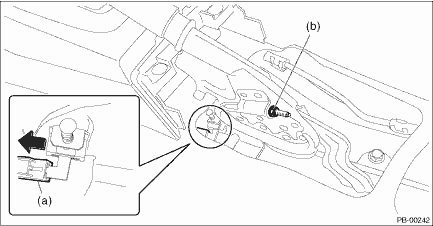

(1) Disconnect the connector (a) of the switch assembly - hand brake.

(2) Remove the adjusting nut (b).

CAUTION:

A self-locking nut is used for the adjusting nut of parking cable. Therefore, replace the self-locking nut with a new one when disassembling.

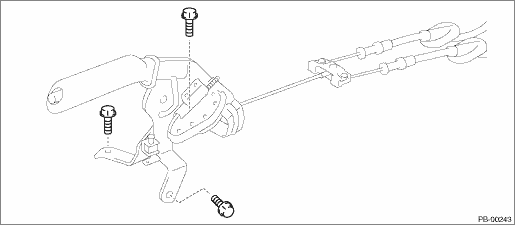

(3) Remove the bolt, and then remove the lever assembly - hand brake.

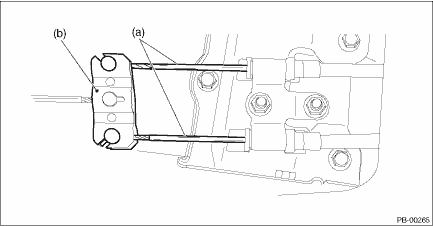

8. Remove the inner cable end (a) from the equalizer (b).
