Subaru Crosstrek Service Manual: Removal

LUBRICATION(H4DO) > Oil Pressure Switch

REMOVAL

CAUTION:

If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emitting smoke or causing a fire.

1. Disconnect the ground cable from battery. NOTE">

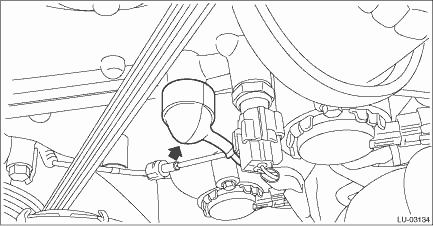

2. Remove the rubber cap.

3. Disconnect the terminal from oil pressure switch.

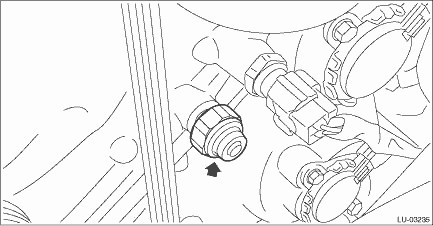

4. Remove the oil pressure switch.

CAUTION:

Catch the engine oil using cloth to prevent it from splashing.

Inspection
LUBRICATION(H4DO) > Oil Pressure SwitchINSPECTION1. Check that the oil pressure switch does not have deformation, cracks or damage.2. Check that there are no oil leaks or oil oozing from the oil pr ...

Installation
LUBRICATION(H4DO) > Oil Pressure SwitchINSTALLATION1. Apply liquid gasket to the oil pressure switch threads.Liquid gasket:THREE BOND 1324 (Part No. 004403042) or equivalent2. Install the oil press ...
