Subaru Crosstrek Service Manual: Removal
LIGHTING SYSTEM > Rear Side Marker Light Bulb
REMOVAL
1. CROSSTREK MODEL
1. Disconnect the ground cable from battery. NOTE">
2. Remove the light assembly - rear combination.
CAUTION:
Be careful not to damage the clips.

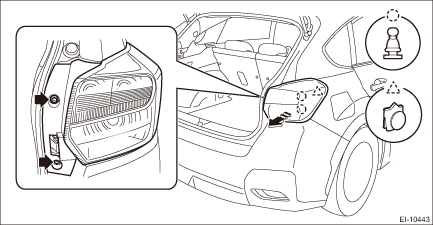

(1) Release the bolts and clips, then pull out the light assembly - rear combination to the vehicle rear.
(2) Disconnect the connector and remove the light assembly - rear combination.

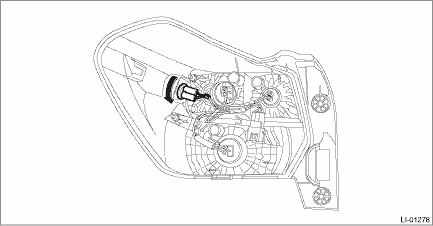

3. Remove the bulb socket and rear side marker light bulb.
CAUTION:
Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
Inspection
LIGHTING SYSTEM > Rear Side Marker Light BulbINSPECTION1. Visually check the bulb for blow out.2. Check the bulb specification. General Description > SPECIFICATION">3. Replace the bulb ...
Installation
LIGHTING SYSTEM > Rear Side Marker Light BulbINSTALLATIONInstall each part in the reverse order of removal.Tightening torque:Light assembly - rear combination: 7.5 N·m (0.76 kgf-m, 5.5 ft-lb ...
