Subaru Crosstrek Service Manual: Removal

LIGHTING SYSTEM > Back-up Light Bulb

REMOVAL

1. CROSSTREK MODEL

1. Disconnect the ground cable from battery. NOTE">

2. Remove the light assembly - rear combination.

CAUTION:

Be careful not to damage the clips.

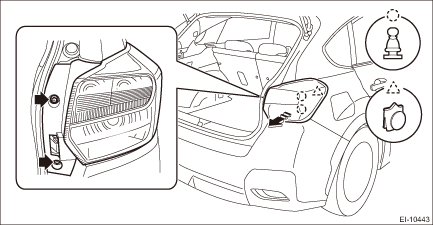

(1) Release the bolts and clips, then pull out the light assembly - rear combination to the vehicle rear.

(2) Disconnect the connector and remove the light assembly - rear combination.

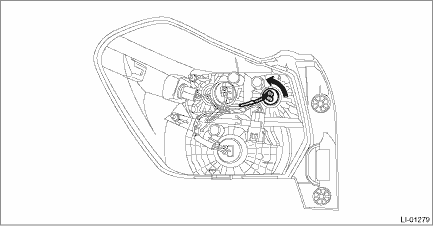

3. Remove the bulb socket and rear turn signal light bulb.

CAUTION:

Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.

Inspection
LIGHTING SYSTEM > Back-up Light BulbINSPECTION1. Visually check the bulb for blow out.2. Check the bulb specification. General Description > SPECIFICATION">3. Replace the bulb if it is ...

Installation
LIGHTING SYSTEM > Back-up Light BulbINSTALLATIONInstall each part in the reverse order of removal.Tightening torque:Light assembly - rear combination: 7.5 N·m (0.76 kgf-m, 5.5 ft-lb) ...
