HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > Power Transistor (Auto A/C Model)
REMOVAL
1. Disconnect the ground cable from battery. NOTE">
2. Remove the glove box. Glove Box > REMOVAL">

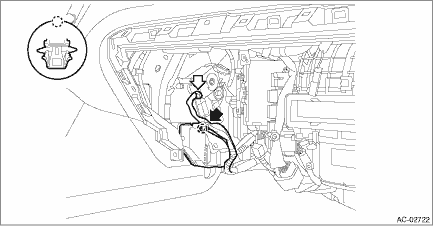

3. Remove the screws and remove the duct - foot RH.
NOTE:
Remove the connector and harness clip of the motor - actuator mix RH, and move the harness aside.

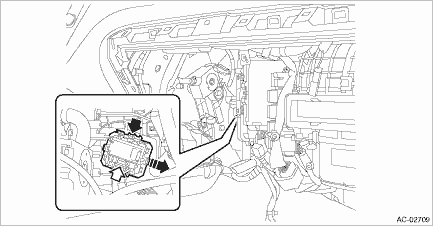

4. Remove the power transistor.
(1) Disconnect the connector.
(2) Remove the power transistor while pressing the power transistor claw part and sliding it.

InstallationSystem features
