Subaru Crosstrek Service Manual: Removal

HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > Heater Duct

REMOVAL

CAUTION:

Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION">

1. Disconnect the battery ground cable and wait for at least 60 seconds before starting work. NOTE">

2. Remove the front seats. Front Seat > REMOVAL">

3. Remove the heater and cooling unit assembly. Heater and Cooling Unit > REMOVAL">

4. Remove the duct - rear heater.

(1) Lift the floor carpet.

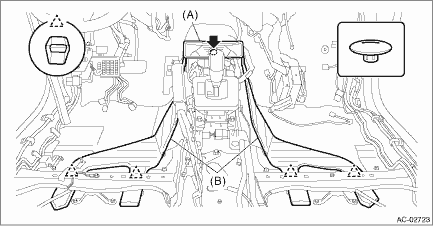

(2) Remove the clips, and remove the duct - rear heater CTR (A).

(3) Release the claws, and remove the duct - rear heater (B) on LH and RH sides.

Installation
HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > Heater DuctINSTALLATIONCAUTION:Before handling the airbag system components, refer to “CAUTION” of “General Description” in &ldquo ...

Heater vent duct
...
