FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Tumble Generator Valve Actuator

REMOVAL

1. Disconnect the ground cable from battery.

2. Disconnect the connector (A) from tumble generator valve assembly, and remove the tumble generator valve actuator.

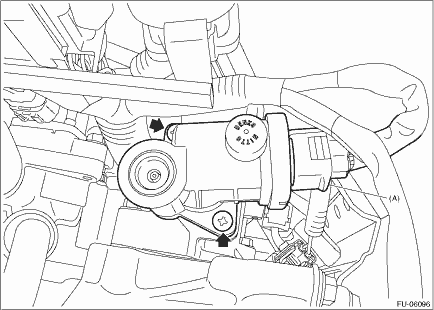

RH side

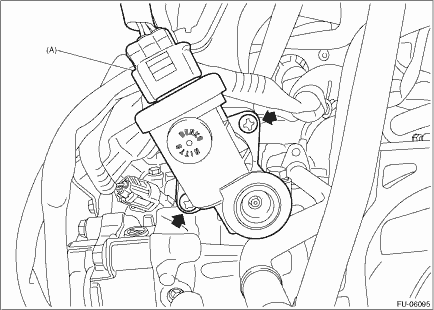

LH side

Inspection
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Tumble Generator Valve ActuatorINSPECTION1. Check that the tumble generator valve actuator has no deformation, cracks or other damages.2. Check tumble generato ...

Installation
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Tumble Generator Valve ActuatorINSTALLATIONInstall in the reverse order of removal.NOTE:Use a new gasket.Tightening torque:6 N·m (0.6 kgf-m, 4.4 ft-lb) ...
