Subaru Crosstrek Service Manual: Removal

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Manifold Absolute Pressure Sensor

REMOVAL

1. Disconnect the ground cable from battery.

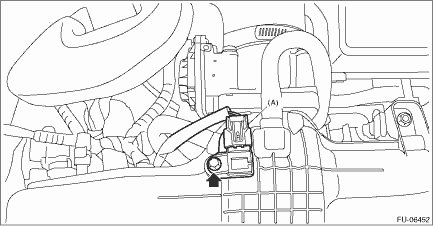

2. Disconnect the connector (A) from the manifold absolute pressure sensor, and remove the manifold absolute pressure sensor from intake manifold.

Inspection
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Manifold Absolute Pressure SensorINSPECTION1. Check that the manifold absolute pressure sensor has no deformation, cracks or other damages.2. Connect dry-cell ...

Installation
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Manifold Absolute Pressure SensorINSTALLATIONInstall in the reverse order of removal.NOTE:Use new O-rings.Tightening torque:3.4 N·m (0.3 kgf-m, 2.5 ft-l ...
