Subaru Crosstrek Service Manual: Removal

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Engine Coolant Temperature Sensor

REMOVAL

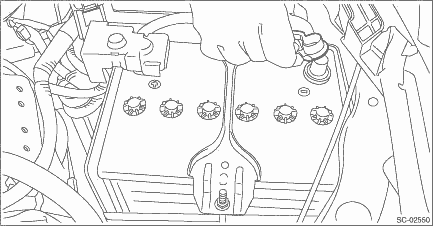

1. Disconnect the ground cable from battery.

2. Drain engine coolant. Engine Coolant > REPLACEMENT">

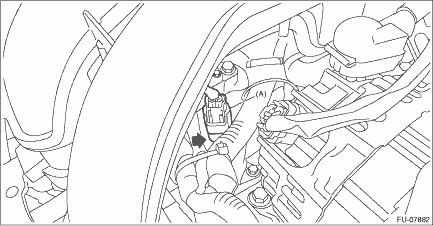

3. Disconnect the connector (A) from the engine coolant temperature sensor, and remove the engine coolant temperature sensor.

Inspection
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Engine Coolant Temperature SensorINSPECTION1. Check that the engine coolant temperature sensor has no deformation, cracks or other damages.2. Immerse the engin ...

Installation
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Engine Coolant Temperature SensorINSTALLATIONInstall in the reverse order of removal.NOTE:Use a new gasket.Tightening torque:18 N·m (1.8 kgf-m, 13.3 ft- ...
