EXTERIOR/INTERIOR TRIM > Front Under Cover

REMOVAL

1. Lift up the vehicle.

2. Remove the bolts and clips, and remove the under cover - front.

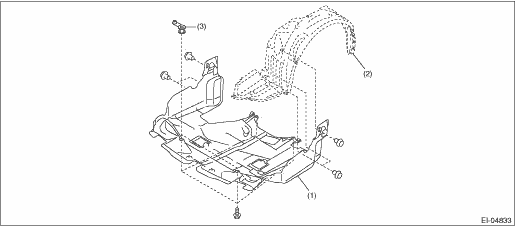

(1)

Under cover - front

(2)

Mud guard - front

(3)

Spacer - under cover
