Subaru Ascent 2018-2026 Owner's Manual: Recommended tire inflation pressure

Recommended cold tire inflation pressure

To ensure optimal handling, safety, and tire longevity for your Subaru Ascent, always follow the recommended cold tire inflation pressures specified for your vehicle. These values are provided in the "Tires" section and are carefully calibrated for the Subaru Ascent to deliver the best balance between comfort, efficiency, and performance.

Vehicle placard

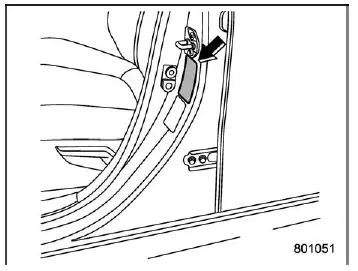

Subaru Ascent vehicle placard location on driver side door pillar showing tire pressure information

The official vehicle placard for your Subaru Ascent is located on the driver’s side door pillar and serves as the primary reference for correct tire specifications.

Example:

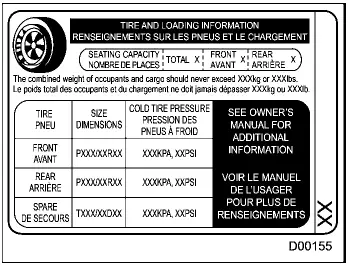

Subaru Ascent tire placard example with tire size pressure seating capacity and loading data

The placard displays important information including the original tire size, the recommended cold inflation pressure for each tire under maximum load conditions, seating capacity, and cargo limits. These values are specifically engineered for the Subaru Ascent and should always be followed when adjusting tire pressure.

Adverse safety consequences of under-inflation

Operating your Subaru Ascent with insufficient tire pressure can lead to serious safety risks. Under-inflated tires flex excessively during driving, generating heat rapidly. This heat buildup can cause structural damage to the tire, including tread separation or sudden tire failure.

Such conditions significantly increase the risk of losing control of your Subaru Ascent, especially at higher speeds, potentially resulting in dangerous driving situations or accidents.

Measuring and adjusting air pressure to achieve proper inflation

To maintain safe and efficient operation of your Subaru Ascent, check the tire pressure of all tires—including the spare—at least once a month and before any extended trip.

Always measure tire pressure when the tires are cold, meaning the vehicle has been stationary for several hours or driven only a short distance. Use a reliable tire pressure gauge to adjust each tire to the specified values indicated on the vehicle placard.

Keep in mind that even short-distance driving can warm up the tires, causing internal air expansion and temporarily increasing pressure. Ambient temperature also plays a significant role in tire pressure variation. For the most accurate readings, check tire pressure outdoors before driving your Subaru Ascent.

If a tire has already warmed up, do not release air to reduce pressure, as this may result in under-inflation once the tire cools down. Proper pressure management ensures optimal traction, improved fuel efficiency, and extended tire life for your Subaru Ascent.

Consistently maintaining the correct tire pressure is one of the simplest yet most critical steps in ensuring the long-term safety, performance, and reliability of your Subaru Ascent.
