Subaru Crosstrek Service Manual: Rear wiper and washer system Wiring diagram

Subaru Crosstrek Service Manual / Wiring system / Rear wiper and washer system Wiring diagram

WIRING SYSTEM > Rear Wiper and Washer System

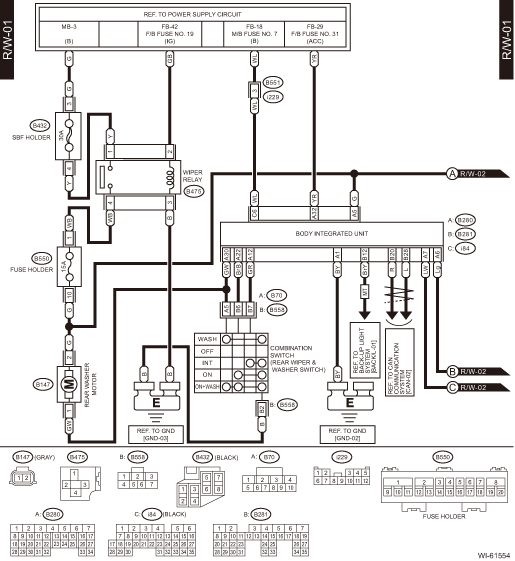

WIRING DIAGRAM

Rear defogger system Wiring diagram
WIRING SYSTEM > Rear Defogger SystemWIRING DIAGRAM ...

Rear wiring harness Location
WIRING SYSTEM > Rear Wiring HarnessLOCATIONConnectorConnecting toNo.PoleColorAreaNo.DescriptionR120C-1B97Bulkhead wiring harnessR320C-3B99R41BlackB-4 Parking brake switchR520C-3B92Bulkhead wiring h ...
