Subaru Ascent 2018-2026 Owner's Manual: Rear door window sunshades
- Hook
In the Subaru Ascent, the rear door window sunshades are seamlessly integrated into the rear door trim, offering both comfort and protection from direct sunlight for rear passengers.

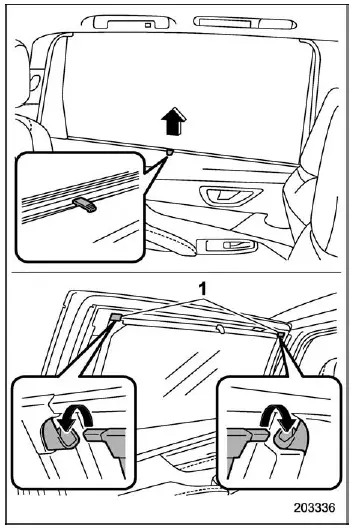

To activate the sunshade in your Subaru Ascent, gently pull it upward and securely attach it to the designated hooks located at the top of the window frame.
To retract the sunshade, carefully unhook it and allow it to roll back slowly into the door trim, ensuring smooth and controlled operation of the mechanism.
CAUTION
- Do not operate the rear door window sunshade in the Subaru Ascent when the window is open, as this may cause the sunshade to detach from the hook.
- To maintain proper functionality and longevity of the Subaru Ascent sunshade
system, follow these important precautions.
- Do not place any objects that could obstruct the movement of the sunshade during opening or closing.
- Avoid placing items directly on the sunshade surface.
- Do not hang any additional items on the hook to prevent damage.
