Subaru Ascent 2018-2026 Owner's Manual: Manual rear gate
The Subaru Ascent manual rear gate can be locked and unlocked using multiple integrated systems, providing flexibility and convenience for different situations.
- Power door locking switch: Refer to "Locking and unlocking from the inside".
- Keyless access with push-button start system (if equipped): Refer to "Keyless access with push-button start system".
- Remote keyless entry system: Refer to "Remote keyless entry system".
- Automatic door locking/unlocking: Refer to "Automatic door locking/unlocking".
To open:

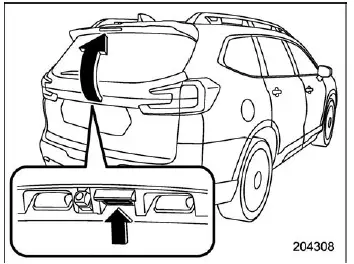

Rear gate opener button
- Unlock the Subaru Ascent rear gate using your preferred access method.
- Press and hold the rear gate opener button until the rear gate releases slightly.
- Firmly grasp the rear gate and lift it upward in a smooth, controlled motion.
NOTE
If the Subaru Ascent rear gate cannot be opened due to a discharged battery, system malfunction, or similar issue, it can be manually unlocked using the rear gate lock release lever. Refer to the dedicated emergency procedure section for details.
To close:
Carefully lower the Subaru Ascent rear gate and press down firmly until the latch securely engages.

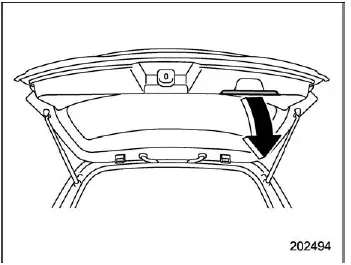

The built-in handle allows for smooth and controlled closing of the rear gate.
WARNING
- Always keep the Subaru Ascent rear gate closed while the engine is running to prevent harmful exhaust gases from entering the cabin.
- Do not attempt to close the Subaru Ascent rear gate while holding the handle improperly.
- Never pull the handle from inside the cargo area to close the rear gate, as this may result in hand entrapment and injury.
CAUTION
- Avoid placing objects such as plastic bags or adhesive materials on the
Subaru Ascent rear gate struts, and do not scratch them while loading cargo.
Damage to the struts may cause gas leakage, preventing the rear gate from remaining open properly.
- Be cautious to avoid hitting your head or face on the Subaru Ascent rear gate when opening or closing it, especially during cargo loading.
Rear gate
CAUTION
When loading or unloading cargo in the Subaru Ascent, avoid contact with hot
exhaust components such as the exhaust pipe or emitted gases, as they may cause
burns or injuries.
NOTE
Do n ...
Power rear gate
WARNING
When operating the Subaru Ascent power rear gate, always ensure the surrounding
area is clear of people and obstacles.
Failure to follow these precautions may result in injury due ...
