Subaru Crosstrek Service Manual: Installation

STARTING/CHARGING SYSTEMS(H4DO) > Generator

INSTALLATION

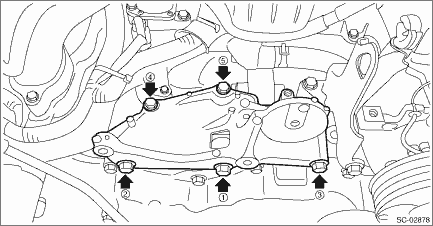

1. Temporarily install the generator bracket to the engine and tighten the bolts in the numerical order.

Tightening torque:

36 N·m (3.7 kgf-m, 26.6 ft-lb)

2. Install the V-belt tensioner assembly. V-belt > INSTALLATION">

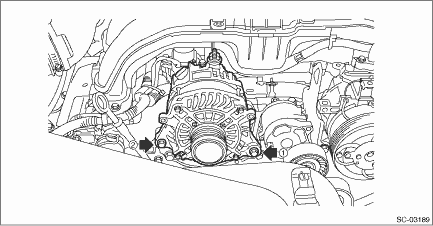

3. Temporarily install the generator bracket to the generator and tighten the bolts in the numerical order.

Tightening torque:

25 N·m (2.5 kgf-m, 18.4 ft-lb)

4. Install the V-belt cover bracket.

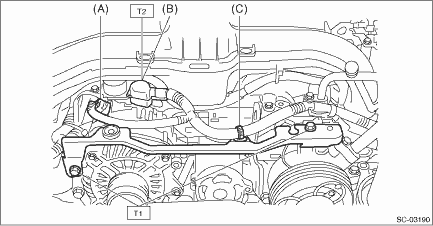

5. Connect the connector (A) and terminal (B) to the generator, and attach the clip (C).

Tightening torque:

T1: 6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

T2: 15.5 N·m (1.6 kgf-m, 11.4 ft-lb)

6. Install the V-belts. V-belt > INSTALLATION">

7. Connect the battery ground terminal. NOTE">

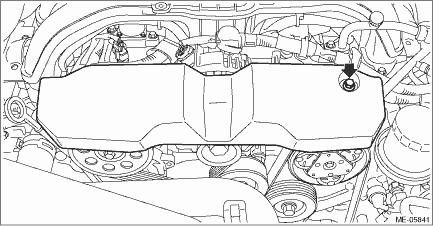

8. Install the V-belt cover.

Tightening torque:

7 N·m (0.7 kgf-m, 5.2 ft-lb)
