Subaru Crosstrek Service Manual / Exterior/interior trim / Lower inner trim / Installation

EXTERIOR/INTERIOR TRIM > Lower Inner Trim

INSTALLATION

Install each part in the reverse order of removal.

NOTE:

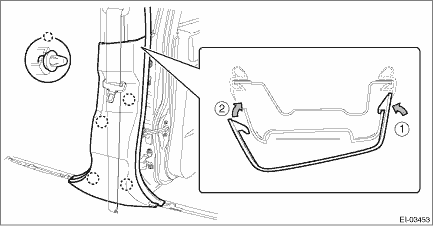

Assemble the trim panel - center pillar LWR to the trim panel - center pillar UPR securely.
