WIPER AND WASHER SYSTEMS > Rear Washer
INSPECTION
1. VISUAL INSPECTION
Check for the following items, and if any malfunction is found, replace the corresponding part.
• Make sure the nozzle - rear washer and the hose - rear washer are not clogged.
• Make sure the hose - rear washer is not bent.
2. INSPECTING THE SPRAY POSITION
1. Turn the wiper switch to OFF position.

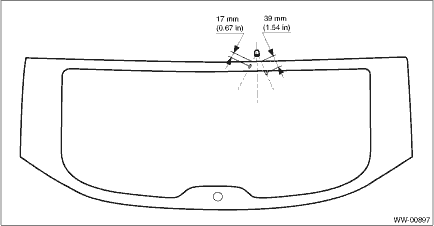

2. While the vehicle is stopped, check that the washer spray position is as shown in the figure.
3. After inspection, if the spray position is significantly out of the specified range, replace the nozzle - rear washer with a new part.
Rear washer
...
Removal
WIPER AND WASHER SYSTEMS > Rear WasherREMOVAL1. Disconnect the ground cable from battery. NOTE">2. Remove the trim panel - rear gate UPR.(1) Remove the claws on the trim edge.(2) Release t ...
