Subaru Crosstrek Service Manual: Inspection

Subaru Crosstrek Service Manual / Sunroof/t-top/convertible top (sunroof) / Sunroof switch / Inspection

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) > Sunroof Switch

INSPECTION

1. Check the resistance between connector terminals.

Preparation tool:

Circuit tester

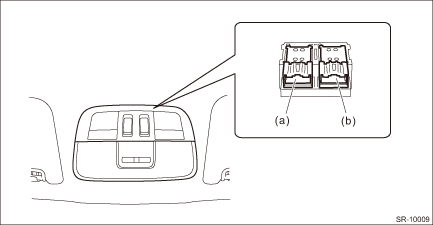

Terminal No.	Inspection conditions	Standard	Connector
1 — 3	Open	Less than 1 ?	(b): Slide switch
4 — 3	Close	Less than 1 ?	(b): Slide switch
1 — 3	Tilt up	Less than 1 ?	(a): Tilt switch
4 — 3	Tilt down	Less than 1 ?	(a): Tilt switch

2. Replace the sunroof switch if the inspection result is not within the standard value.

Removal

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) > Sunroof SwitchREMOVAL1. Disconnect the ground cable from battery. NOTE">2. Remove the light assembly - map. (Models without EyeSight) Spot Map Li ...
