Subaru Crosstrek Service Manual: Inspection

MECHANICAL(H4DO) > V-belt

INSPECTION

1. Check the V-belt for cracks, tear or wear.

2. Check the V-belt tensioner assembly and idler pulley for deformation, cracks or other damages.

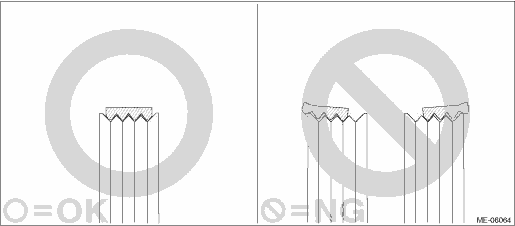

3. Check that the V-belt ribs are securely placed on the rib grooves for each pulley.

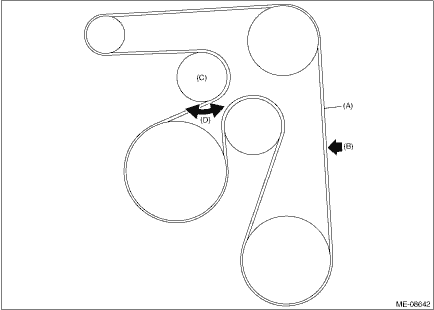

4. Check that the V-belt tensioner assembly (C) moves in the direction of arrow (D), when the V-belt (A) is pushed and released by the area indicated by the arrow (B).

5. Start the engine and confirm that the V-belt rotates smoothly and no abnormal noise is emitted.

V-belt
...

Removal
MECHANICAL(H4DO) > V-beltREMOVALNOTE:When replacing a single part, perform the work with the engine assembly installed to body.1. V-BELT1. When working on the vehicleNOTE:When working on the vehicl ...
