Subaru Crosstrek Owners Manual: Exterior

Subaru Crosstrek Owners Manual / Illustrated / Illustrated index / Exterior

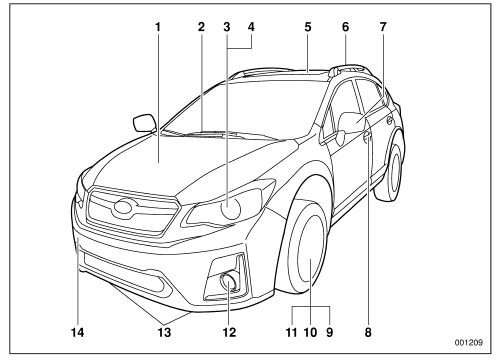

Exterior

  1. Engine hood
  2. Wiper
  3. Headlight
  4. Replacing bulbs
  5. Moonroof
  6. Roof rails
  7. Outside mirror
  8. Door locks
  9. Tire pressure
  10. Flat tires
  11. Snow tires
  12. Fog light
  13. Tie-down hooks
  14. Towing hook

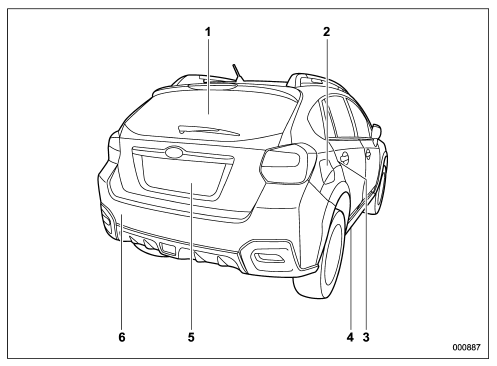

Exterior

  1. Rear window defogger
  2. Fuel filler lid and cap
  3. Child safety locks
  4. Tie-down hole
  5. Rear gate
  6. Towing hook
