Subaru Crosstrek Owners Manual: Interior

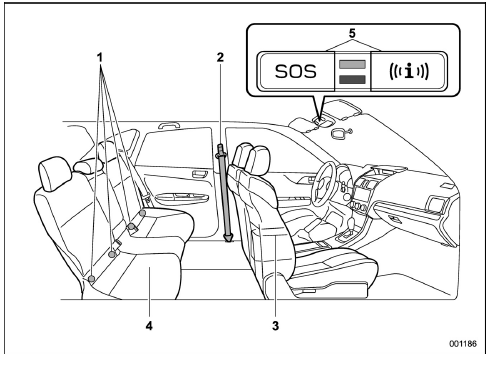

Passenger compartment area

Passenger compartment area

  1. Lower anchorages for child restraint system
  2. Seatbelt
  3. Front seat
  4. Rear seat
  5. Buttons for SUBARU STARLINK

NOTE

For U.S.-spec. models with SUBARU STARLINK: Refer to the Owner's Manual supplement f o r SUBARU STARLINK.

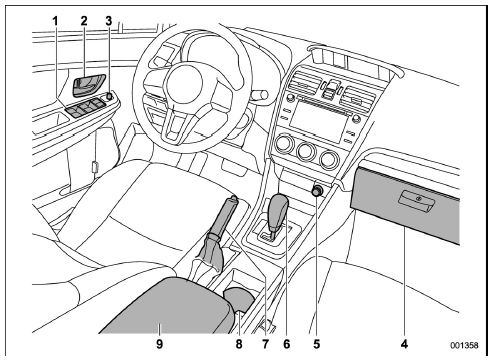

Passenger compartment area

  1. Power window switches
  2. Door locks
  3. Outside mirror switch
  4. Glove box
  5. Front power supply socket
  6. Shift lever (MT) (page 7-22)/Select lever (CVT)
  7. Parking brake lever
  8. Cup holder
  9. Center console
