MECHANICAL(H4DO) > Engine Oil Pressure

INSPECTION

1. Disconnect the ground cable from battery. NOTE">

2. Remove the oil pressure switch. Oil Pressure Switch > REMOVAL">

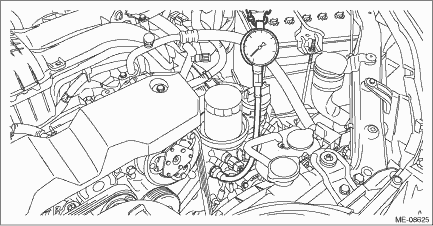

3. Install the oil pressure gauge to the chain cover.

4. Connect the battery ground terminal. NOTE">

5. Start the engine, and check the oil pressure.

NOTE:

Standard value is based on an engine oil temperature of 80°C (176°F).

If the oil pressure is out of specification, check oil pump, oil filter and lubrication line. Engine Lubrication System Trouble in General > INSPECTION">

If the oil pressure warning light is ON and oil pressure is within standard, check the oil pressure switch. Engine Lubrication System Trouble in General > INSPECTION">

Engine oil pressure:

Standard

50 kPa (0.5 kg/cm2, 7 psi) or more (at 600 r/min)
350 kPa (3.6 kg/cm2, 51 psi) or more (at 6,000 r/min)

6. After inspection, install the related parts in the reverse order of removal.
