Subaru Ascent 2018-2026 Owner's Manual: Electronic Brake Force Distribution (EBD) system
The Electronic Brake Force Distribution (EBD) system in the Subaru Ascent enhances braking efficiency by dynamically adjusting the distribution of braking force between the front and rear wheels. This optimization depends on factors such as vehicle load, speed, and driving conditions, ensuring stable and balanced braking performance.
The EBD system works in conjunction with the ABS system, utilizing shared components to precisely manage brake force. If any ABS-related component in the Subaru Ascent fails, the EBD system will also become inactive.
During operation, the Subaru Ascent EBD system may produce slight vibrations or sounds similar to ABS activity. These are normal and indicate proper system function.
If EBD system malfunctions

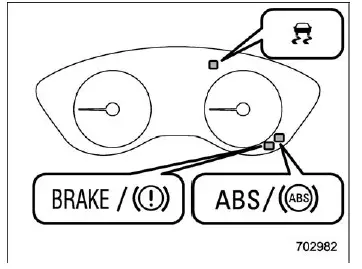

If a malfunction occurs in the Subaru Ascent EBD system, it will automatically deactivate, and several warning lights will illuminate simultaneously on the dashboard.
- Brake system warning light
- ABS warning light
- Vehicle Dynamics Control warning light
If these warning lights remain illuminated after releasing the parking brake, it may indicate low brake fluid or a fault in the Subaru Ascent braking system. In this situation, stop the vehicle safely as soon as possible and contact a SUBARU dealer for assistance.
WARNING
- Driving the Subaru Ascent with the brake warning light illuminated is
extremely dangerous.
This may indicate a serious issue with the braking system, reducing its effectiveness.
If the warning light remains on, have the vehicle inspected immediately by a qualified SUBARU dealer.
- If there is any uncertainty about the performance of the Subaru Ascent
brakes, do not continue driving.
Arrange for the vehicle to be towed to the nearest SUBARU dealer for proper diagnosis and repair.
The Subaru Ascent braking system, including ABS and EBD technologies, is designed to provide maximum stability and safety under a wide range of driving conditions, but attentive driving and proper maintenance remain essential for optimal performance.
