Subaru Crosstrek Service Manual: Dtc p0717 input/turbine shaft speed sensor "a" circuit no signal

Subaru Crosstrek Service Manual / Continuously variable transmission (diagnostics) / Diagnostic procedure with diagnostic trouble code (dtc) / Dtc p0717 input/turbine shaft speed sensor "a" circuit no signal

CONTINUOUSLY VARIABLE TRANSMISSION (DIAGNOSTICS) > Diagnostic Procedure with Diagnostic Trouble Code (DTC)

DTC P0717 INPUT/TURBINE SHAFT SPEED SENSOR "A" CIRCUIT NO SIGNAL

DTC detecting condition:

Immediately at fault recognition

Trouble symptom:

• Standing start problems

• Shock occurs when engaging the lockup clutch.

• Shock occurs when selecting shift position.

CAUTION:

Use the check board when measuring the TCM terminal voltage and resistance.

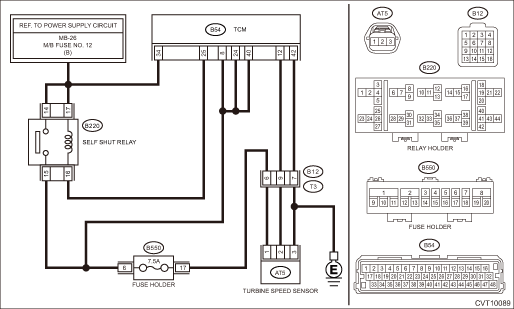

Wiring diagram:

CVT control system CVT Control System">

STEP	CHECK	YES	NO

1.CHECK FUSE.

1) Turn the ignition switch to OFF.

2) Remove the fuse (7.5 A) from the fuse holder.

3) Check the fuse.

Is the check result OK?

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0717 INPUT/TURBINE SHAFT SPEED SENSOR "A" CIRCUIT NO SIGNAL">Go to Step 2.

Replace the fuse. If the fuse blows out easily, repair the short circuit of harness.

2.CHECK HARNESS.

1) Disconnect the TCM connector.

2) Remove the self shut relay.

3) Measure the resistance between TCM connector and relay holder.

Connector & terminal

(B54) No. 25 — (B220) No. 16:

(B54) No. 8 — (B220) No. 15:

(B54) No. 24 — (B220) No. 15:

(B54) No. 40 — (B220) No. 15:

Is the resistance less than 1 ??

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0717 INPUT/TURBINE SHAFT SPEED SENSOR "A" CIRCUIT NO SIGNAL">Go to Step 3.

Repair the open circuit of harness.

3.CHECK HARNESS.

Measure the resistance between TCM connector and chassis ground.

Connector & terminal

(B54) No. 25 — Chassis ground:

(B54) No. 8 — Chassis ground:

(B54) No. 24 — Chassis ground:

(B54) No. 40 — Chassis ground:

Is the resistance 1 M? or more?

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0717 INPUT/TURBINE SHAFT SPEED SENSOR "A" CIRCUIT NO SIGNAL">Go to Step 4.

Repair the short circuit of harness.

4.CHECK RELAY POWER SUPPLY.

Measure the voltage between relay holder and chassis ground.

Connector & terminal

(B220) No. 14 (+) — Chassis ground (−):

(B220) No. 17 (+) — Chassis ground (−):

Is the voltage 10 V or more?

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0717 INPUT/TURBINE SHAFT SPEED SENSOR "A" CIRCUIT NO SIGNAL">Go to Step 5.

Repair the open or short circuit of harness.

5.CHECK SELF SHUT RELAY.

Measure the resistance between self shut relay terminals.

Terminals

No. 16 — No. 17:

Is the resistance 110 — 140 ??

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0717 INPUT/TURBINE SHAFT SPEED SENSOR "A" CIRCUIT NO SIGNAL">Go to Step 6.

Replace the self shut relay.

6.CHECK SELF SHUT RELAY.

Measure the resistance between self shut relay terminals.

Terminals

No. 14 — No. 15:

Is the resistance 1 M? or more?

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0717 INPUT/TURBINE SHAFT SPEED SENSOR "A" CIRCUIT NO SIGNAL">Go to Step 7.

Replace the self shut relay.

7.CHECK INPUT SIGNAL FOR TCM.

1) Connect the TCM connector.

2) Install the self shut relay.

3) Read the data of «Control module voltage» using Subaru Select Monitor.

Is the «Control module voltage» 10 V or more?

Current condition is normal. Check for poor contact in connectors or harnesses, and repair the defective part.

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0717 INPUT/TURBINE SHAFT SPEED SENSOR "A" CIRCUIT NO SIGNAL">Go to Step 8.

8.CHECK HARNESS.

1) Turn the ignition switch to OFF.

2) Disconnect the TCM connector.

3) Disconnect the transmission connector.

4) Measure the resistance between TCM connector and transmission connectors.

Connector & terminal

(B54) No. 12 — (B12) No. 9:

(B54) No. 42 — (B12) No. 7:

(B550) No. 17 — (B12) No. 6:

Is the resistance less than 1 ??

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0717 INPUT/TURBINE SHAFT SPEED SENSOR "A" CIRCUIT NO SIGNAL">Go to Step 9.

Repair the open circuit of harness.

9.CHECK HARNESS.

Measure the resistance between TCM connector and chassis ground.

Connector & terminal

(B54) No. 12 — Chassis ground:

Is the resistance 1 M? or more?

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0717 INPUT/TURBINE SHAFT SPEED SENSOR "A" CIRCUIT NO SIGNAL">Go to Step 10.

Repair the short circuit of harness.

10.CHECK HARNESS.

Measure the resistance between relay holder and fuse holder.

Connector & terminal

(B220) No. 15 — (B550) No. 6:

Is the resistance less than 1 ??

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0717 INPUT/TURBINE SHAFT SPEED SENSOR "A" CIRCUIT NO SIGNAL">Go to Step 11.

Repair the open circuit of harness.

11.CHECK TRANSMISSION HARNESS.

1) Install the fuse.

2) Connect the TCM connector.

3) Turn the ignition switch to ON.

4) Measure the voltage between transmission connector terminals.

Connector & terminal

(B12) No. 6 (+) — Chassis ground (−):

Is the voltage 10 — 13 V?

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0717 INPUT/TURBINE SHAFT SPEED SENSOR "A" CIRCUIT NO SIGNAL">Go to Step 12.

Repair the open circuit of harness or poor contact of connector.

12.CHECK INPUT SIGNAL FOR TCM.

1) Turn the ignition switch to OFF.

2) Connect the transmission connector.

3) Lift up the vehicle.

4) Start the engine.

5) Read the data of «Turbine Revolution Speed» using the Subaru Select Monitor.

Does the value of «Turbine Revolution Speed» change according to the engine speed?

Current condition is normal. Repair the poor contacts of harnesses of turbine speed sensor and transmission connector.

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0717 INPUT/TURBINE SHAFT SPEED SENSOR "A" CIRCUIT NO SIGNAL">Go to Step 13.

13.CHECK TRANSMISSION HARNESS.

1) Turn the ignition switch to OFF.

2) Disconnect the transmission connector.

3) Disconnect the turbine speed sensor connector.

4) Measure the resistance between transmission connector and turbine speed sensor connector.

Connector & terminal

(T3) No. 6 — (AT5) No. 1:

(T3) No. 7 — (AT5) No. 3:

(T3) No. 9 — (AT5) No. 2:

Is the resistance less than 1 ??

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0717 INPUT/TURBINE SHAFT SPEED SENSOR "A" CIRCUIT NO SIGNAL">Go to Step 14.

Replace the transmission harness.

14.CHECK TURBINE SPEED SENSOR HARNESS.

Measure the resistance between transmission connector and chassis ground.

Connector & terminal

(T3) No. 6 — Chassis ground:

(T3) No. 9 — Chassis ground:

Is the resistance 1 M? or more?

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0717 INPUT/TURBINE SHAFT SPEED SENSOR "A" CIRCUIT NO SIGNAL">Go to Step 15.

Repair the short circuit of harness.

15.CHECK TURBINE SPEED SENSOR.

1) Turn the ignition switch to OFF.

2) Replace the turbine speed sensor. Turbine Speed Sensor">

3) Perform the Clear Memory Mode. Clear Memory Mode">

4) Read the DTC.

Is DTC P0717 displayed?

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0717 INPUT/TURBINE SHAFT SPEED SENSOR "A" CIRCUIT NO SIGNAL">Go to Step 16.

The original turbine speed sensor is defective.

16.CHECK SELF SHUT RELAY.

1) Turn the ignition switch to OFF.

2) Replace the self shut relay.

3) Perform the Clear Memory Mode. Clear Memory Mode">

4) Read the DTC.

Is DTC P0717 displayed?

Replace the TCM. Transmission Control Module (TCM)">

The original self shut relay is defective.

1. OUTLINE OF DIAGNOSIS

• Detect the no input signal from the turbine speed sensor.

• Judge as NG if there is no input signal from the turbine speed sensor, while the primary speed sensor on the same shaft has the input signal with the forward/reverse clutch engaged.

2. EXECUTION CONDITION

Secondary parameters	Execution condition
12 V battery system voltage	≥ 10 V
Engine speed	≥ 400 rpm
Transmission range	Drive or Reverse
Measured primary pulley shaft speed	≥ 500 rpm

3. DIAGNOSTIC METHOD

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Judgment Value

Malfunction Criteria	Threshold Value
Measured turbine shaft speed	0 rpm

Time Needed for Diagnosis: 0.6 seconds

Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.
