Subaru Crosstrek Service Manual: Component

AIRBAG SYSTEM > General Description

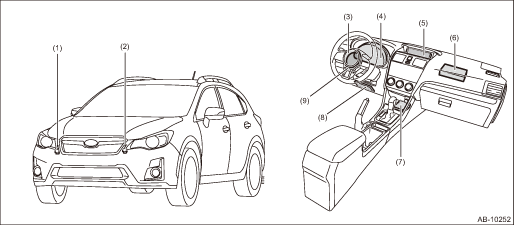

COMPONENT

(1)

Front sub sensor RH

(4)

Airbag warning light (in combination meter)

(7)

Airbag control module

(2)

Front sub sensor LH

(5)

Airbag ON/OFF indicator light (MFD)

(8)

Knee airbag module

(3)

Driver’s airbag module

(6)

Passenger’s airbag module

(9)

Steering roll connector

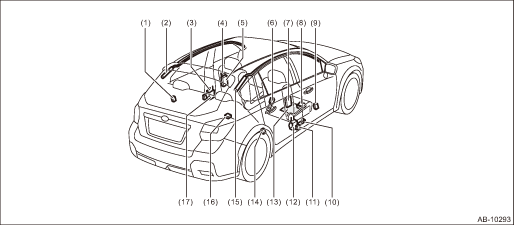

(1)

Curtain airbag sensor LH

(7)

Side airbag module RH

(13)

Occupant detection sensor

(2)

Curtain airbag module LH

(8)

Occupant detection control module

(14)

Curtain airbag sensor RH

(3)

Seat belt pretensioner LH

(9)

Front door impact sensor RH

(15)

Curtain airbag module RH

(4)

Front door impact sensor LH

(10)

Lap seat belt pretensioner RH

(16)

Satellite safing sensor

(5)

Side airbag module LH

(11)

Side airbag sensor RH

(17)

Side airbag sensor LH

(6)

Buckle switch RH

(12)

Seat belt pretensioner RH

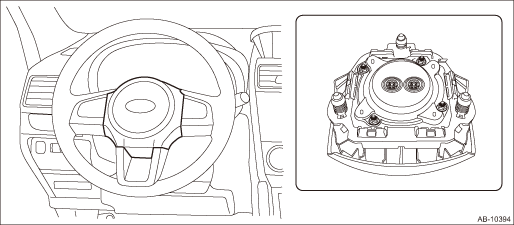

1. DRIVER’S AIRBAG MODULE

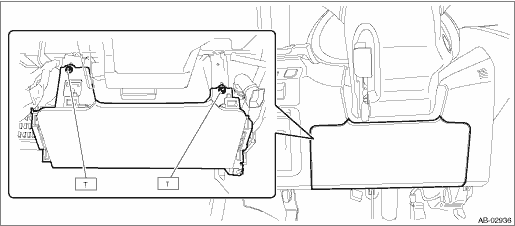

2. KNEE AIRBAG MODULE

Tightening torque:

7.5 N·m (0.76 kgf-m, 5.5 ft-lb)

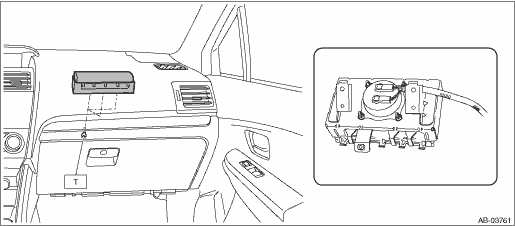

3. PASSENGER’S AIRBAG MODULE

Tightening torque:

7.5 N·m (0.76 kgf-m, 5.5 ft-lb)

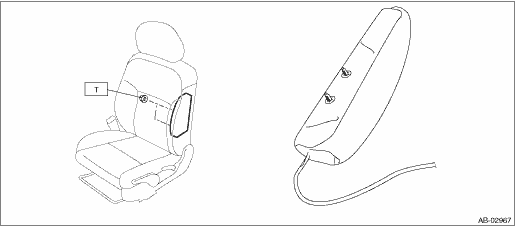

4. SIDE AIRBAG MODULE

Tightening torque:

6 N·m (0.61 kgf-m, 4.4 ft-lb)

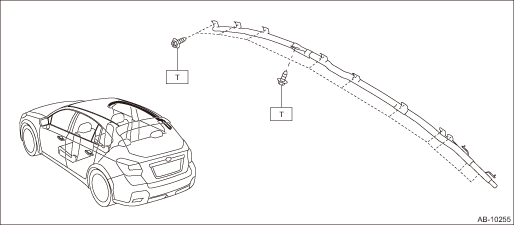

5. CURTAIN AIRBAG MODULE

Tightening torque:

7.5 N·m (0.76 kgf-m, 5.5 ft-lb)

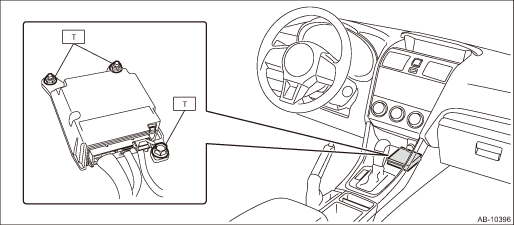

6. AIRBAG CONTROL MODULE

CAUTION:

Do not reuse mounting bolts and nuts.

Tightening torque:

25 N·m (2.55 kgf-m, 18.4 ft-lb)

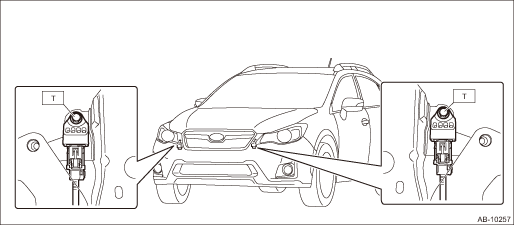

7. FRONT SUB SENSOR

CAUTION:

Do not reuse mounting bolts and nuts.

Tightening torque:

13 N·m (1.33 kgf-m, 9.6 ft-lb)

8. FRONT DOOR IMPACT SENSOR

CAUTION:

Do not reuse mounting bolts and nuts.

Tightening torque:

7.5 N·m (0.76 kgf-m, 5.5 ft-lb)

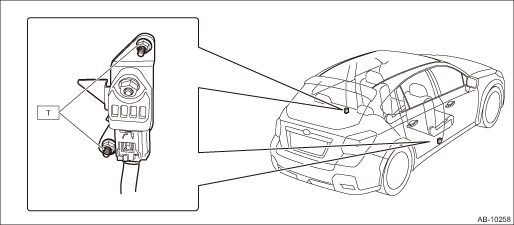

9. SIDE AIRBAG SENSOR

CAUTION:

Do not reuse mounting bolts and nuts.

Tightening torque:

7.5 N·m (0.76 kgf-m, 5.5 ft-lb)

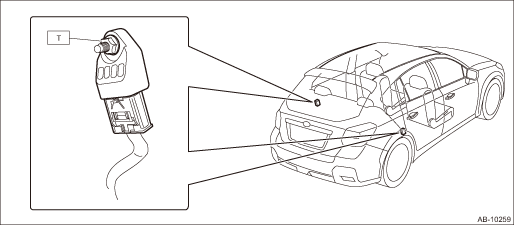

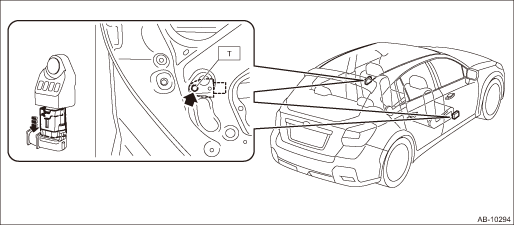

10. CURTAIN AIRBAG SENSOR

CAUTION:

Do not reuse mounting bolts and nuts.

Tightening torque:

7.5 N·m (0.76 kgf-m, 5.5 ft-lb)

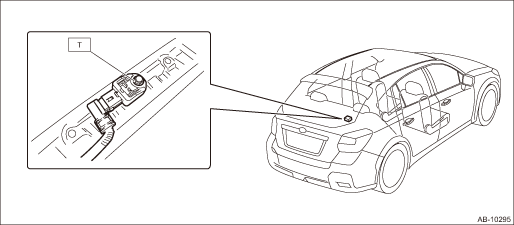

11. SATELLITE SAFING SENSOR

CAUTION:

Do not reuse mounting bolts and nuts.

Tightening torque:

7.5 N·m (0.76 kgf-m, 5.5 ft-lb)

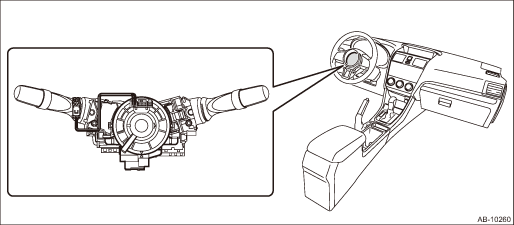

12. STEERING ROLL CONNECTOR

Preparation tool
