Subaru Ascent 2018-2026 Owner's Manual: Climate control panel

WARNING

• In the Subaru Ascent, the cooling function of the climate control system operates only when the engine is running. Always ensure the engine is active when relying on air conditioning.
• Never leave children, dependent individuals, or pets unattended inside the Subaru Ascent. On hot days, interior temperatures can rise rapidly and become dangerous, potentially causing serious injury or even fatal consequences.

CAUTION

Do not open or close the center console lid while operating the rear climate control panel in the Subaru Ascent, as this may result in fingers being caught and cause injury.

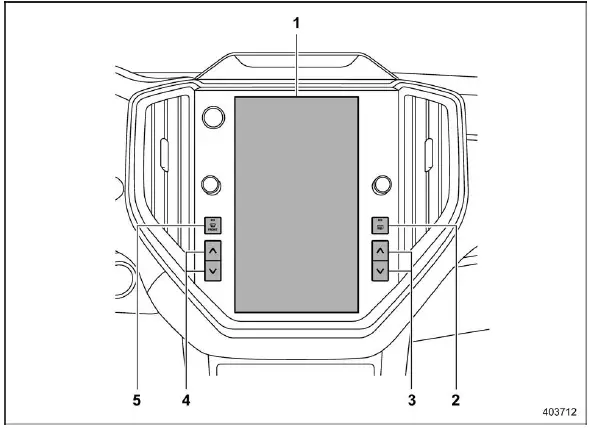

Front climate control panel

1. Climate control screen
2. Defogger button
3. Passenger's side temperature control button
4. Driver's side temperature control button
5. Defroster button

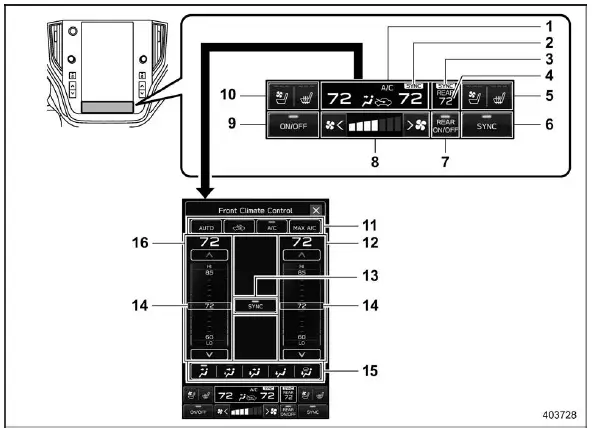

Front climate control screen

:Touch the climate control mode indicator

1. Climate control mode indicator
2. SYNC mode indicator
3. REAR SYNC mode indicator
4. REAR set temperature
5. Front passenger's seat heater/ventilation icon (if equipped)*1
6. Customizable icon*2
7. REAR climate control ON/OFF icon
8. Fan speed control
9. Climate control ON/OFF icon
10. Driver's seat heater/ventilation icon (if equipped)*1
11. Climate control mode select icon
12. Temperature control screen (passenger's side)
13. SYNC icon
14. Temperature control bar
15. Airflow mode selection screen
16. Temperature control screen (driver's side)

*1: Refer to "Front seat heater and ventilation" for detailed information.
*2: The customizable icon in the Subaru Ascent can be configured to display preferred shortcuts for quicker access.

The Subaru Ascent front climate control system integrates a touchscreen interface that allows precise control over temperature, airflow direction, and fan speed. Drivers and passengers can independently adjust comfort settings or synchronize them using the SYNC feature for consistent cabin temperature.

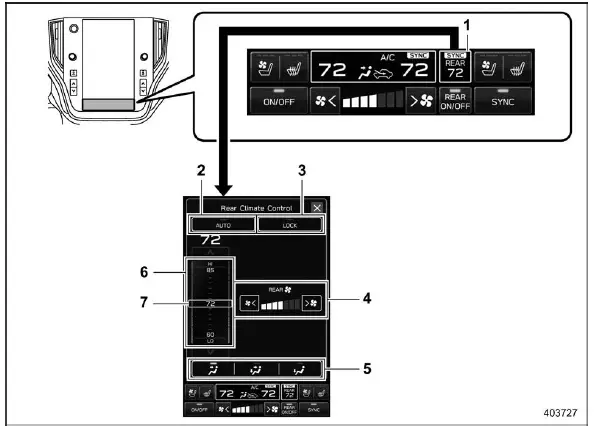

Rear climate control screen

:Touch the rear climate control mode indicator

1. Rear climate control mode indicator
2. Rear climate control auto mode icon
3. Rear climate control panel lock icon*
4. Fan speed control
5. Airflow mode selection screen
6. Temperature control screen
7. Temperature control bar

*: Activating the "LOCK" function disables rear climate control panel operation. When locked, the corresponding indicator appears on both the central display and the rear control interface of the Subaru Ascent.

This function is particularly useful in the Subaru Ascent when the driver wants to maintain consistent climate settings without rear passenger adjustments.

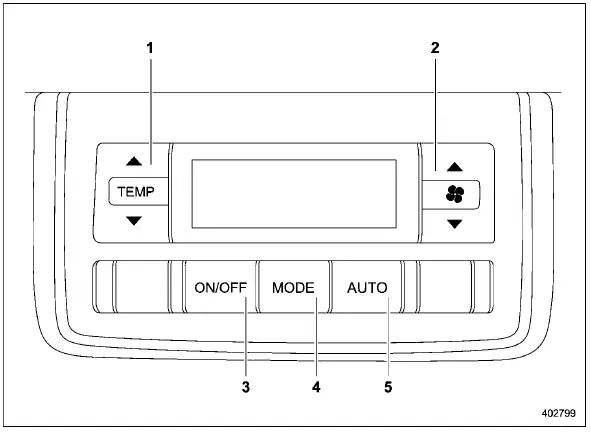

Rear climate control panel

1. Temperature control button
2. Fan speed control button
3. Rear climate control ON/OFF button
4. Airflow mode selection button
5. AUTO button

The rear climate control panel in the Subaru Ascent allows passengers to independently adjust temperature, fan speed, and airflow direction. The AUTO mode automatically regulates these parameters to maintain a comfortable cabin environment.

NOTE

If the rear climate control system is locked via the center information display, a lock icon will appear on both the central screen and the rear panel. While this indicator is visible, rear passengers cannot modify climate settings. To restore control, unlock the system through the appropriate settings menu in the Subaru Ascent.

The Subaru Ascent climate control system is designed to deliver a balanced and comfortable interior environment for all occupants, combining intuitive controls with advanced features that adapt to varying driving conditions and passenger preferences.
