Subaru Crosstrek Service Manual: Audio system Wiring diagram

Subaru Crosstrek Service Manual / Wiring system / Audio system Wiring diagram

WIRING SYSTEM > Audio System

WIRING DIAGRAM

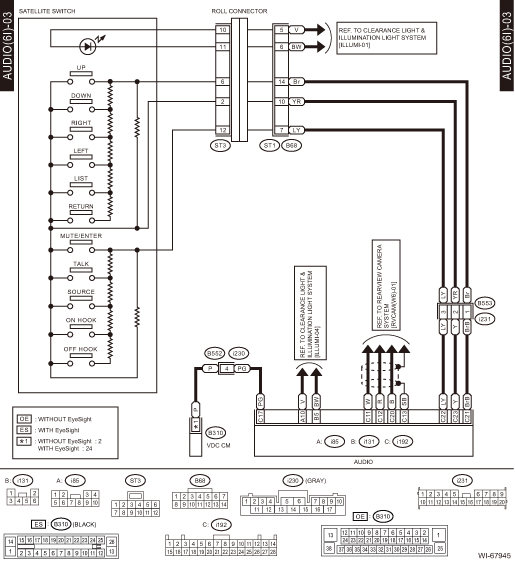

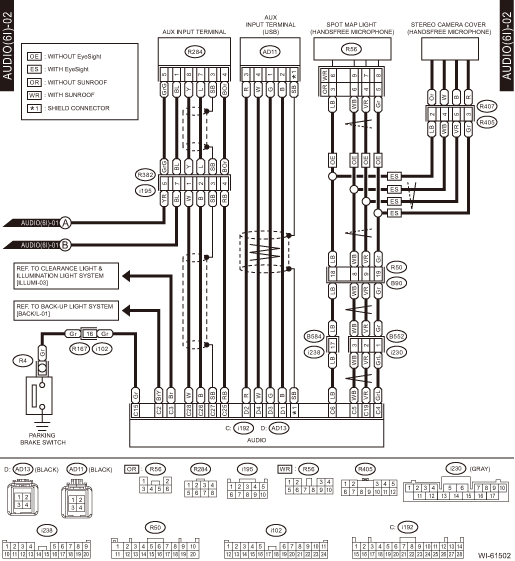

1. 6.2-INCH DISPLAY

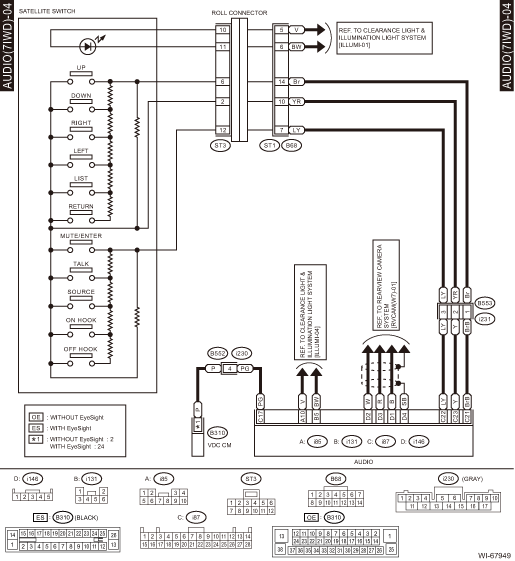

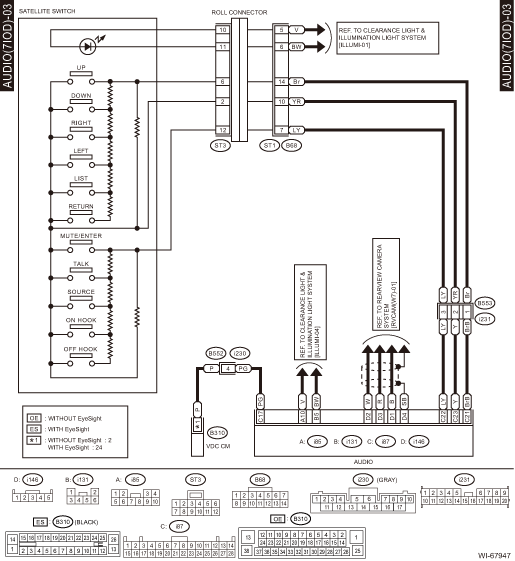

2. 7 INCH DISPLAY (WITHOUT TELEMATICS)

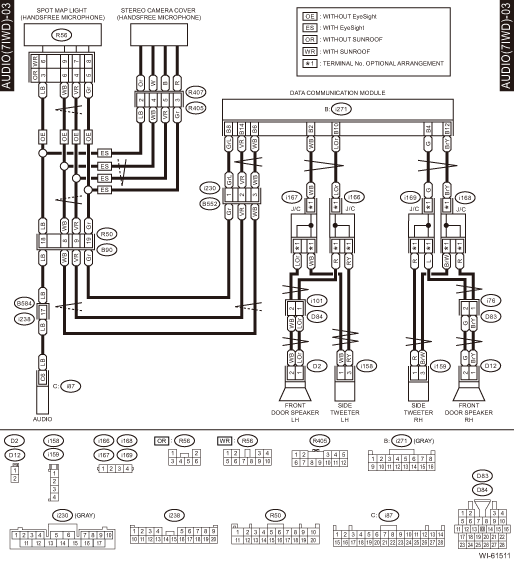

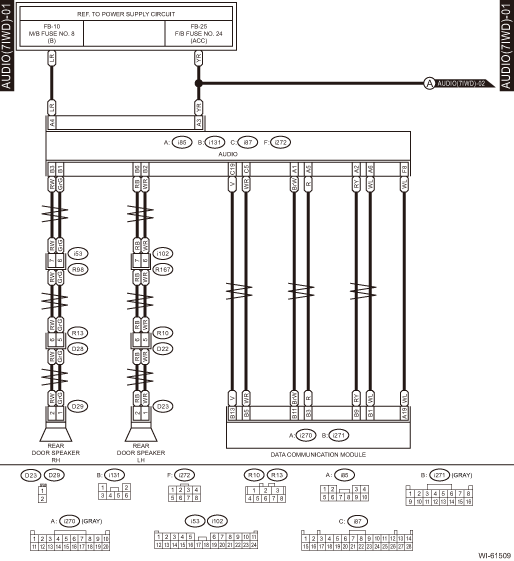

3. 7 INCH DISPLAY (WITH TELEMATICS)

Antenna cord Location

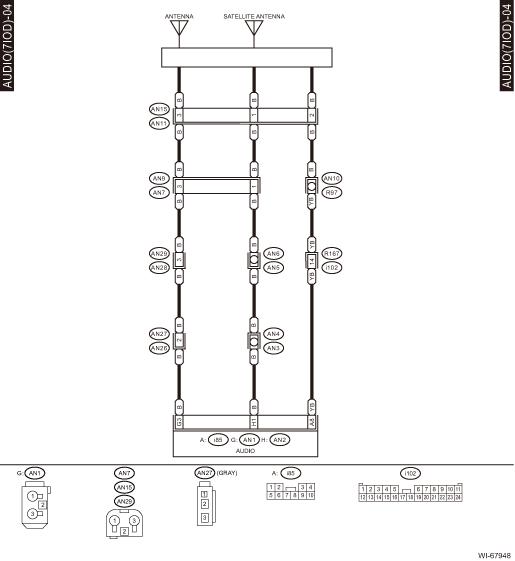

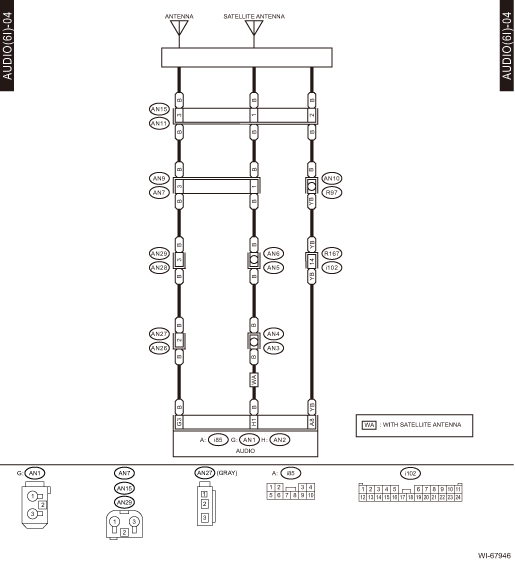

WIRING SYSTEM > Antenna CordLOCATION1. WITHOUT TELEMATICSConnectorConnecting toNo.PoleColorAreaNo.DescriptionAN13B-2 Audio3B-2 Navigation unitAN21B-2 Audio1B-2 Navigation unitAN31B-2AN4Antenna cord ...

Back-up light system Wiring diagram
WIRING SYSTEM > Back-up Light SystemWIRING DIAGRAM ...
