Subaru Crosstrek Service Manual: Removal

AIRBAG SYSTEM > Satellite Safing Sensor

REMOVAL

CAUTION:

Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION">

1. Turn the ignition switch to OFF.

2. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">

3. Remove the rear seat cushion assembly. Rear Seat > REMOVAL">

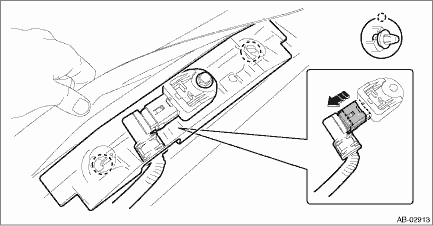

4. Remove the satellite safing sensor.

(1) Remove the clip, and remove the cover - satellite safing.

(2) Remove the bolts and then remove the satellite safing sensor. Airbag Connector > PROCEDURE">
