Subaru Crosstrek Owners Manual: Type A

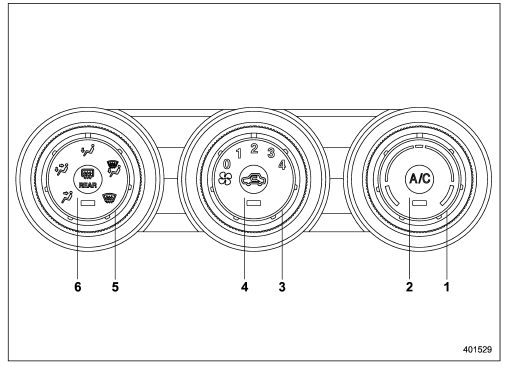

- Temperature control dial (Refer to "Temperature control"
- Air conditioner button (Refer to "Air conditioner control"
- Fan speed control dial (Refer to "Fan speed control"
- Air inlet selection button (Refer to "Air inlet selection"
- Airflow mode selection dial (Refer to "Airflow mode selection"
- Rear window defogger button (Refer to "Defogger and deicer"
Type B
Temperature control dial (Refer to "Automatic
climate control operation (type B, C
and D)" F4-7 and/or "Temperature control"
Air conditioner button (Refer to "Air
conditioner control"
...
