Subaru Crosstrek Owners Manual: Tool locations

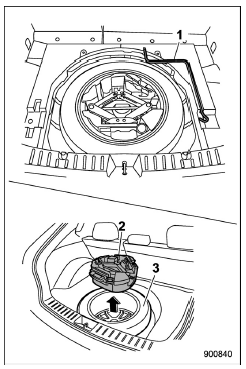

Tool locations

  1. Jack handle
  2. Tool bucket
  3. Spare tire

Tool locations

  1. Wheel nut wrench
  2. Screwdriver
  3. Jack
  4. Towing hook (eye bolt)

A jack handle is stored under the floor of the cargo area. A jack and a towing hook are stored in the tool bucket that is located in the recess of the spare tire wheel.

Also, a tool bag that contains a wheel nut wrench and a screwdriver is equipped with the vehicle. Open the tool bag and store the tools in the tool bucket as illustrated in order that all tools are ready for use at any time.
