Subaru Crosstrek Service Manual: Removal
REAR SUSPENSION > Rear Stabilizer
REMOVAL
1. Lift up the vehicle, and then remove the rear wheels.

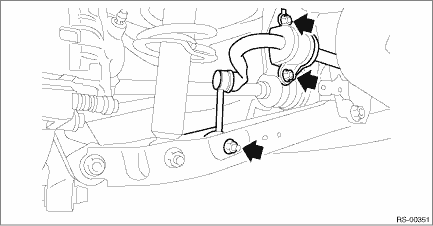

2. Remove the rear stabilizer.
(1) Remove the left and right stabilizer links.
(2) Detach the clamp - stabilizer bushing and remove the rear stabilizer.
