LUBRICATION(H4DO) > Engine Oil Filter

REMOVAL

CAUTION:

If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emitting smoke or causing a fire.

1. OIL FILTER

1. Turn the ignition switch to OFF.

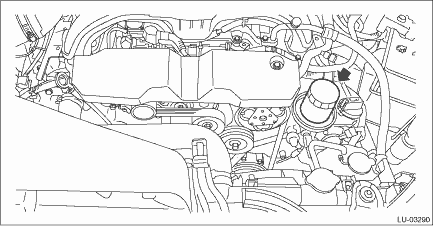

2. Remove the oil filter.

NOTE:

Clean off water or dust from the oil element mating surface using air.

• Oil filter (black)

Remove the oil filter using ST.

ST 18332AA000

OIL FILTER WRENCH (outer diameter: 68 mm (2.68 in) for oil filter)

• Oil filter (blue)

Remove using a general tool (65/67 mm 14 Flutes).

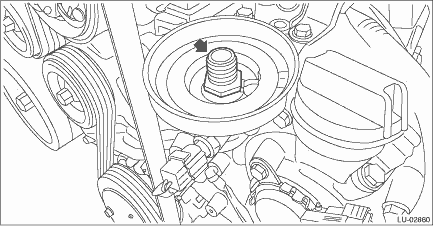

2. OIL PUMP UNION

1. Remove the oil filter. Engine Oil Filter > REMOVAL">

2. Remove the oil pump union from the chain cover.

Inspection

LUBRICATION(H4DO) > Engine Oil FilterINSPECTION1. After installing the oil filter, run the engine and check for oil leakage.NOTE:The filter element and filter case are permanently jointed; therefor ...
