Subaru Crosstrek Service Manual: Removal

INTAKE (INDUCTION)(H4DO) > Air Cleaner Case

REMOVAL

1. Disconnect the ground cable from battery. NOTE">

2. Remove the air intake duct. Air Intake Duct > REMOVAL">

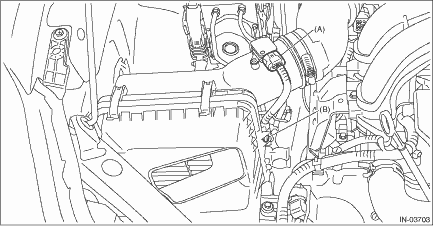

3. Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the clip (B).

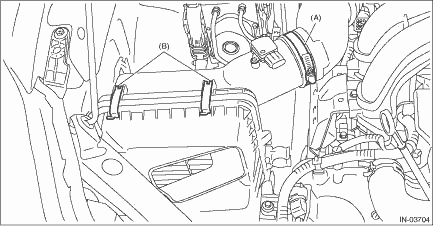

4. Loosen the clamp (A) which secures the air intake boot to the air cleaner case (rear), and then remove the clip (B) from the air cleaner case (front).

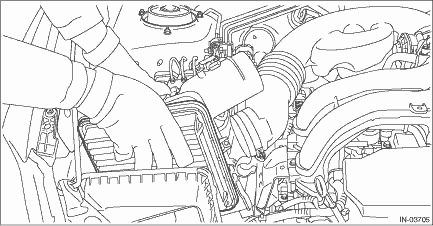

5. Remove the air cleaner case (rear) and air cleaner element.

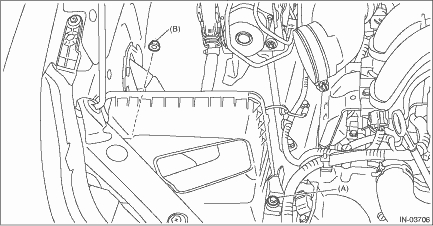

6. Remove the bolt (A) and nut (B) which secure the air cleaner case (front) to the body.

7. Remove the air cleaner case (front).

Inspection
INTAKE (INDUCTION)(H4DO) > Air Cleaner CaseINSPECTION1. Check that the air cleaner case has no deformation, cracks or other damages.2. Check that the air intake boot has no cracks, damage or loose ...

Installation
INTAKE (INDUCTION)(H4DO) > Air Cleaner CaseINSTALLATION1. Install the bolt (A) and nut (B) which secure the air cleaner case (front) to the body.Tightening torque:Bolt (A)6 N·m (0.6 kgf-m, 4 ...
