Subaru Crosstrek Service Manual: Removal

Subaru Crosstrek Service Manual / Hvac system (heater, ventilator and a/c) / Fresh/recirc door actuator / Removal

HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > FRESH/RECIRC Door Actuator

REMOVAL

CAUTION:

Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION">

1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">

2. Remove the glove box. Glove Box > REMOVAL">

3. Remove the engine control module (ECM). Engine Control Module (ECM) > REMOVAL">

4. Remove the blower motor unit assembly. Blower Motor Unit Assembly > REMOVAL">

5. Remove the screws and detach the motor - actuator blower.

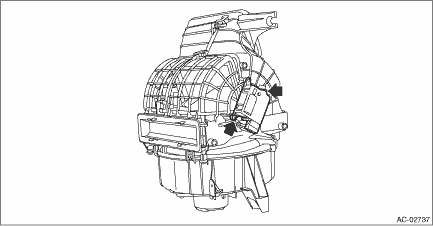

• Manual A/C model

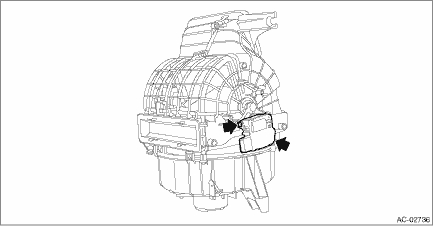

• Auto A/C model

Inspection

HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > FRESH/RECIRC Door ActuatorINSPECTION1. CHECK LINK1. Visually check the operation range of the link, and remove the foreign material if any.2. Operate the ...

Installation

HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > FRESH/RECIRC Door ActuatorINSTALLATIONCAUTION:• After installing the grille assembly - ventilation RH, check that the air vent grille of the grille ...
