Subaru Crosstrek Service Manual: Removal

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Mass Air Flow and Intake Air Temperature Sensor

REMOVAL

1. Disconnect the ground cable from battery.

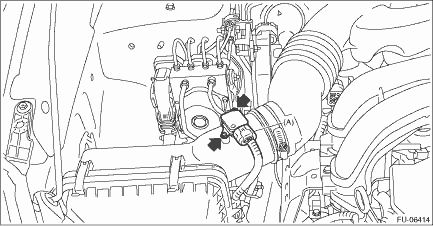

2. Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the mass air flow and intake air temperature sensor.

Inspection
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Mass Air Flow and Intake Air Temperature SensorINSPECTION1. CHECK THE MASS AIR FLOW SENSOR UNIT1. Connect the battery positive terminal to terminal No. 3 and t ...

Installation
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Mass Air Flow and Intake Air Temperature SensorINSTALLATIONInstall in the reverse order of removal.Tightening torque:1 N·m (0.1 kgf-m, 0.7 ft-lb) ...
