Subaru Crosstrek Service Manual: Removal

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Fuel Pump Relay

REMOVAL

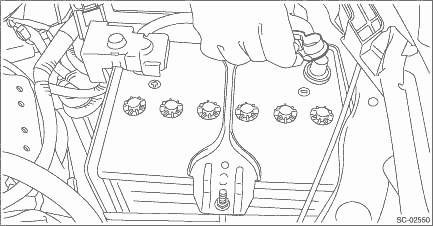

1. Disconnect the ground cable from battery.

2. Remove the glove box. Glove Box > REMOVAL">

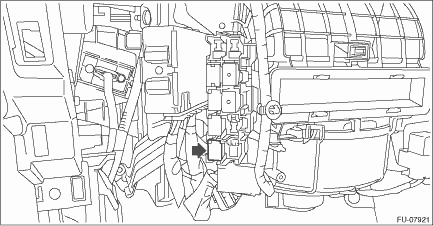

3. Remove the fuel pump relay from relay block.

Inspection
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Fuel Pump RelayINSPECTION1. Check that the fuel pump relay has no deformation, cracks or other damages.2. Measure the resistance between fuel pump relay termin ...

Installation
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Fuel Pump RelayINSTALLATIONInstall in the reverse order of removal. ...
