Subaru Crosstrek Service Manual: Removal

ENTERTAINMENT > Rear Speaker

REMOVAL

1. Disconnect the ground cable from battery. NOTE">

2. Remove the trim panel - rear door. Door Trim > REMOVAL">

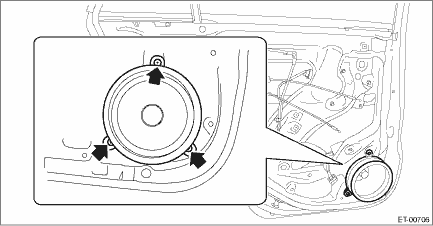

3. Remove the rear speaker assembly.

(1) Remove the screws.

(2) Disconnect the connector behind the speaker and remove the rear speaker assembly.

Installation
ENTERTAINMENT > Rear SpeakerINSTALLATIONInstall each part in the reverse order of removal. ...
