Subaru Crosstrek Service Manual: Removal

Subaru Crosstrek Service Manual / Continuously variable transmission(tr580) / Turbine speed sensor / Removal

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Turbine Speed Sensor

REMOVAL

CAUTION:

Be sure to prevent water or oil from contacting the connector terminal of turbine speed sensor. If adhesion occurs, replace with a new part.

1. Lift up the vehicle.

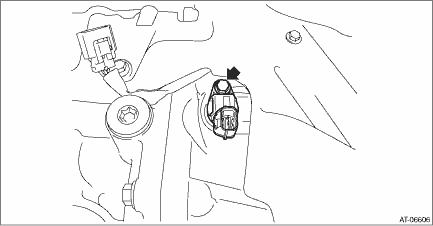

2. Remove the harness connector from turbine speed sensor.

3. Remove the turbine speed sensor.

Inspection

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Turbine Speed SensorINSPECTION1. Set the ST between the TCM and bulkhead harness.ST 18460AA040CHECK BOARD2. Set the probe of oscilloscope to the check ...

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Turbine Speed SensorINSTALLATIONCAUTION:Be sure to prevent water or oil from contacting the connector terminal of turbine speed sensor. If adhesion occur ...
