PARKING BRAKE > Parking Brake Lever

INSTALLATION

1. Install each part in the reverse order of removal.

CAUTION:

The front seat mounting bolts differ between the front mounting points and the rear mounting points. When installing the front seat, make sure that you are using correct bolts at correct positions.

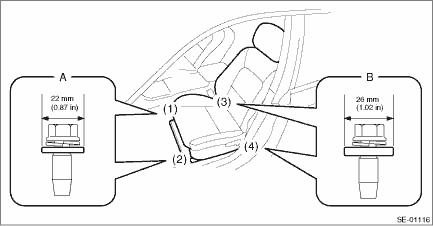

Tighten the slide rail assembly installing bolts in the order as shown in the figure, in several steps by gradually increasing the torque until they reach the specified torque.

Front (bolt A): Washer diameter 22 mm (0.87 in)

Rear (bolt B): Washer diameter 26 mm (1.02 in)

Tightening torque:

Front seat assembly: 53 N·m (5.40 kgf-m, 39.1 ft-lb)

Tightening torque:

Lever assembly - hand brake: 18 N·m (1.84 kgf-m, 13.3 ft-lb)

Console box assembly: 6.5 N·m (0.66 kgf-m, 4.8 ft-lb)

2. Install a new adjusting nut (self-locking nut).

3. Be sure to adjust the lever stroke. Parking Brake Lever > ADJUSTMENT">
