Subaru Crosstrek Service Manual: Inspection

SEAT BELT SYSTEM > Front Seat Belt

INSPECTION

1. VISUAL INSPECTION

Check for the following, and replace with new parts if necessary.

Pretensioner is cracked or deformed.

Adjuster assembly - seat belt is cracked or deformed.

Seat belt is slackened, bent or worn.

Seat belt is abnormally wound or extended.

Seat belt inner - front is deformed or damaged.

Seat belt buckle cannot be engaged properly.

2. ELR LOCK MECHANISM INSPECTION

1. Hold the retractor upright (as installed in the vehicle) and check the ELR lock mechanism.

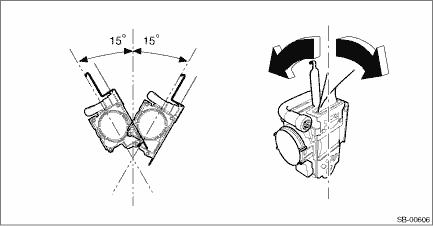

2. Tilt the retractor from the upright posture and check the following points.

It does not lock if the inclination angle is 15° or less.

It remains locked if the inclination angle is 27° or more.

3. If the ELR lock mechanism does not operate properly, replace the seat belt outer - front with a new part.

3. SEAT BELT SWITCH INSPECTION

Preparation tool:

Circuit tester

Driver’s seat

Check the resistance between the terminals when the seat belt inner - front is in each of the following operation conditions.

Terminal No.

Inspection conditions

Standard

Circuit

2 — 1

Tongue plate inserted

1 M? or more

2 — 1

Tongue plate detached

1 ? or less

Replace the seat belt inner - front if the inspection result is not within the standard.

Passenger’s seat

Check the current between the terminals when the seat belt inner - front is in each of the following operation conditions.

Terminal No.

Inspection conditions

Standard

Circuit

1 — 2

Tongue plate inserted

12 — 18 mA

1 — 2

Tongue plate detached

4 — 7 mA

Replace the seat belt inner - front if the inspection result is not within the standard.

Front seat belt
...

Removal
SEAT BELT SYSTEM > Front Seat BeltREMOVAL1. SEAT BELT OUTER - FRONTCAUTION:• Before handling the airbag system components, refer to “CAUTION” of “General Description” ...
